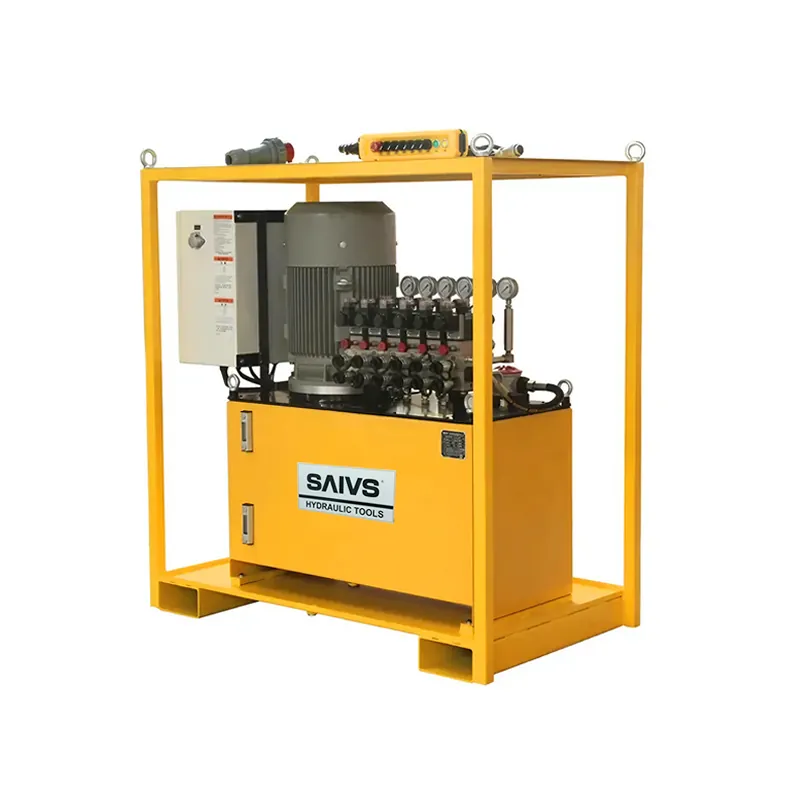

HLE, Intelligent quantitative, Synchronous Lifting Systems
-
Model: HLE-213 - HLE-805
Export Quantity: 2/4/6/8
Fuel Tank Capacity: 40/150 L
Working Pressure: 700 bar
Flow rate at rated pressure: 0.45-4.2 L/min
Motor Power: 5.5-11 KW
Weight: 235-521 kg
Suitable Cylinders: single-acting & double-acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HLE, Intelligent quantitative, Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLA , Double Acting，PLC Synchronous Lifting Systems
Description
Product Line: Industrial Tools
Customizable with special requirement
This Hydraulic System offers precise synchronization for individual or simultaneous valve control, enabling rising, holding, and falling functions. It can be operated manually or electromagnetically and is compatible with both Single-Acting and Double-Acting cylinders. Each circuit is equipped with an adjustable pressure relief valve for safety. The system achieves accurate synchronization by using a single motor to drive a hydraulic pump with multiple outlets, ensuring equal oil flow to different lines. This minimizes the impact of load size on synchronization, making it ideal for applications requiring precise control and coordinated movement.

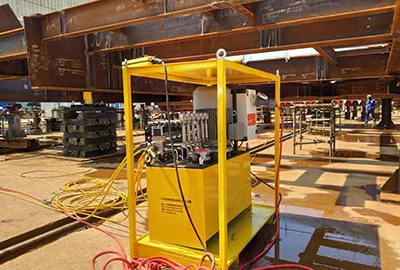

Applications
Series Comparison
| Model | Export Quantity | Fuel Tank Capacity (L) | Flow （L/min） | Motor Power | Weight (kg) |
| 24V Electromagnetic Valve | (kW) | ||||
| HLE-213 | 2 | 40 | 1.3 | 5.5 | 235 |
| HLE-228 | 2 | 150 | 2.8 | 7.5 | 483 |
| HLE-442 | 4 | 150 | 4.2 | 11 | 521 |
| HLE-404 | 4 | 40 | 0.45 | 5.5 | 235 |
| HLE-409 | 4 | 150 | 0.9 | 5.5 | 470 |
| HLE-414 | 4 | 150 | 1.4 | 5.5 | 483 |
| HLE-421 | 4 | 150 | 2.1 | 7.5 | 521 |
| HLE-604 | 6 | 40 | 0.45 | 5.5 | 235 |
| HLE-805 | 8 | 40 | 0.55 | 7.5 | 275 |
