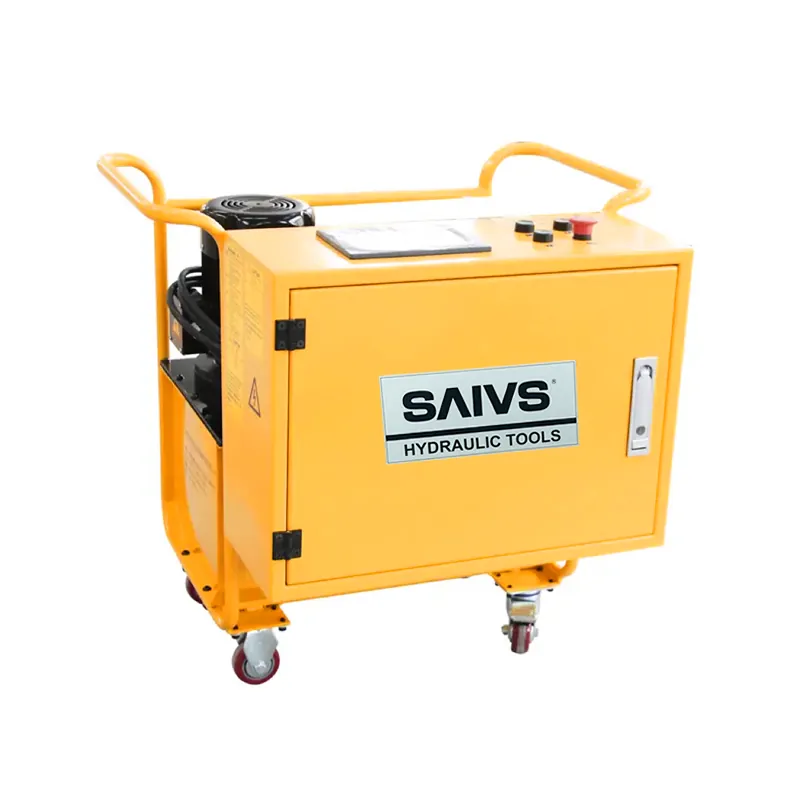

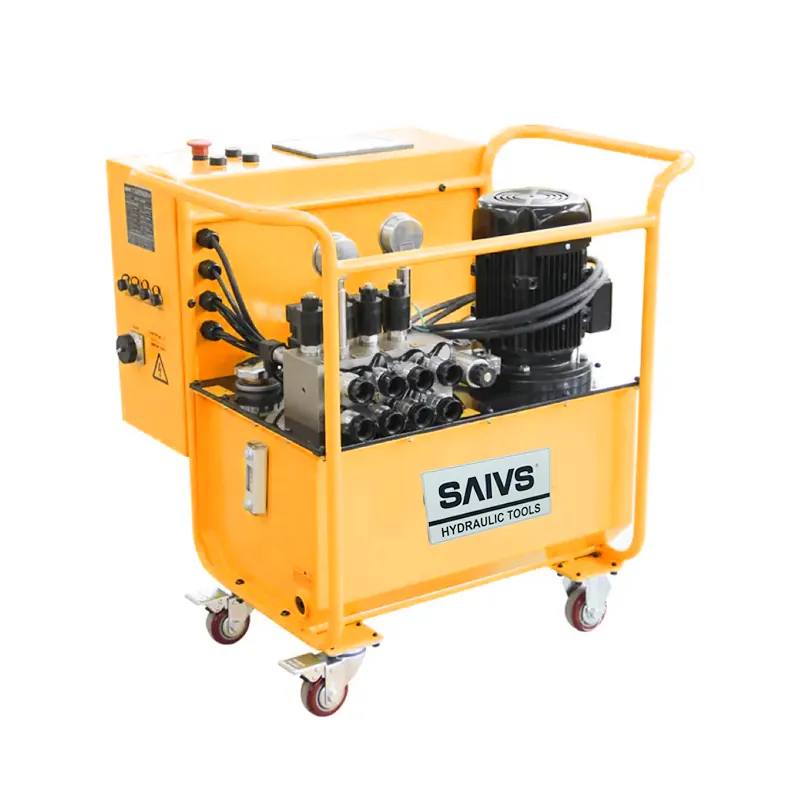

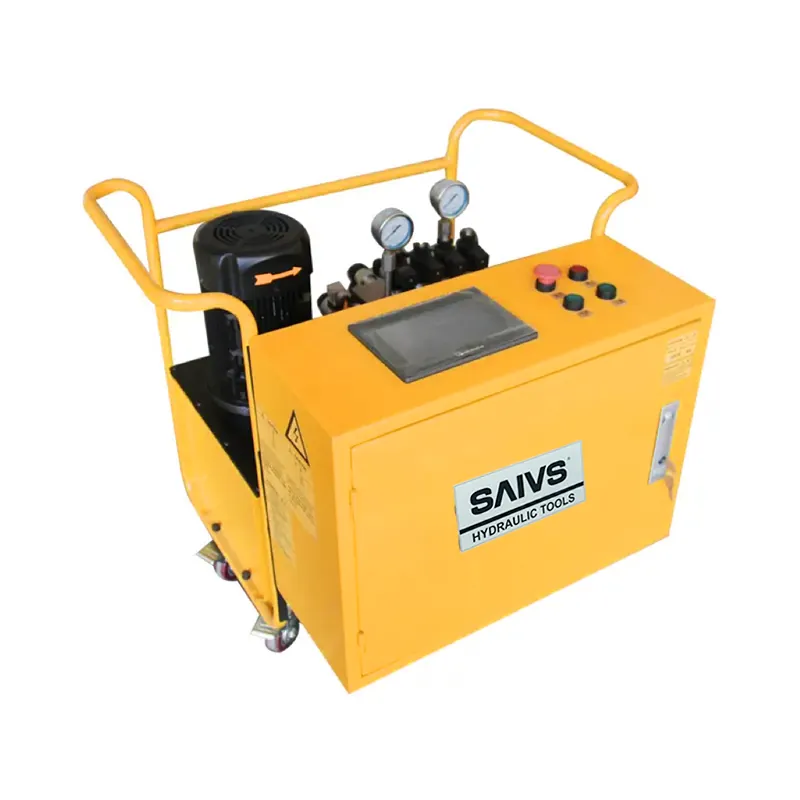

HLD, Multi-point, PLC Synchronous Lifting Systems
-
Model: HLD-4 | HLD-8
Synchronous Precision: ≤±0.5 mm
Working Pressure: 350/700 bar
Voltage: 380 AC380V 50Hz 3Ph
Operating Mode: Button & Touch Screen
Control Model: Pulse Width-Modulation
Control Points: 4/8
Points Extended: Network communication and points extended
Field Applications: highway bridge rubber bearings
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HLE, Intelligent quantitative, Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLA , Double Acting，PLC Synchronous Lifting Systems
Description
Product Line: Industrial Tools
Customizable with special requirement

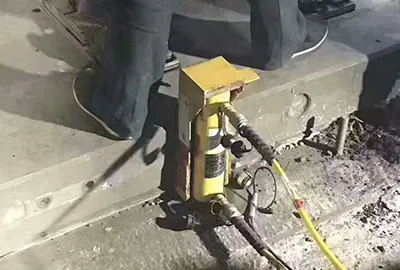

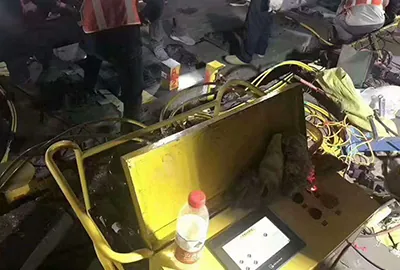

The PLC Portable Multi-point Synchronous Hydraulic Lifting System, available in both low and high-pressure models, uses hydraulic driving with pressure and displacement closed-loop control for precise multi-point lifting. Widely used in applications like highway bridge rubber bearing replacement, overpass lifting, and historic building translation, it integrates the latest international technology with years of experience in Hydraulic Systems. The system is designed to meet the specific maintenance needs of highways and bridges, offering synchronous precision and advanced control through button and touch screen interfaces.
Applications
|
|
Series Comparison
| Model | Synchronou Sprecision(mm) | Voltage | Max.Working Pressure(bar) | Operating Mode | Control Model | Control Points | Points Extended |
| HLD-4 | ≤±0.5 | AC380V 50Hz 3Ph | 350 | Button & Touch Screen | Pulse Width-Modulation | 4 | Network communication and points extended |
| HLD-8 | ≤±0.5 | AC380V 50Hz 3Ph | 700 | Button & Touch Screen | Pulse Width-Modulation | 8 | Network communication and points extended |
Literature
