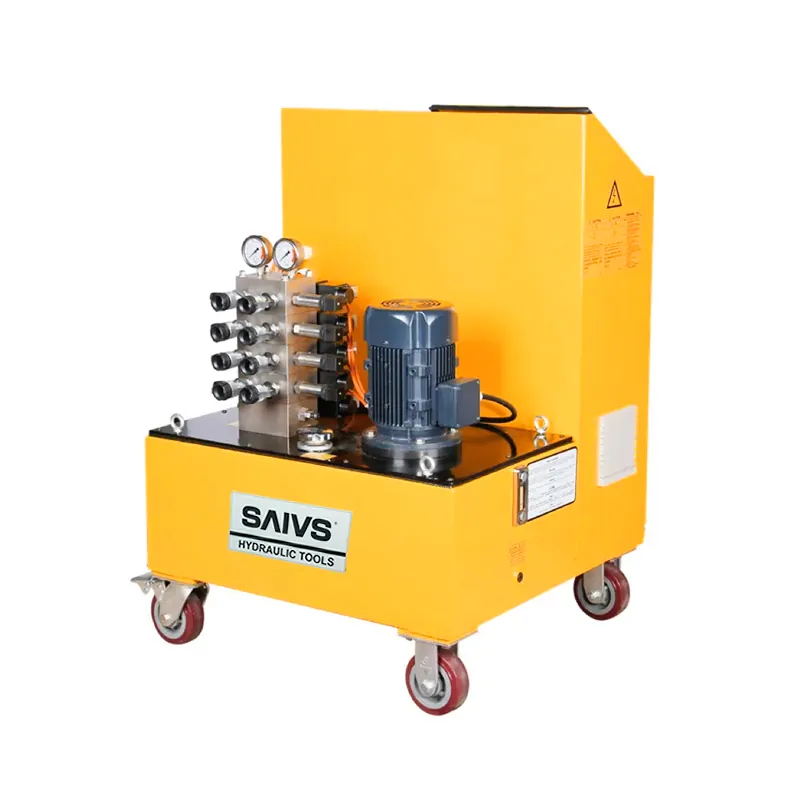

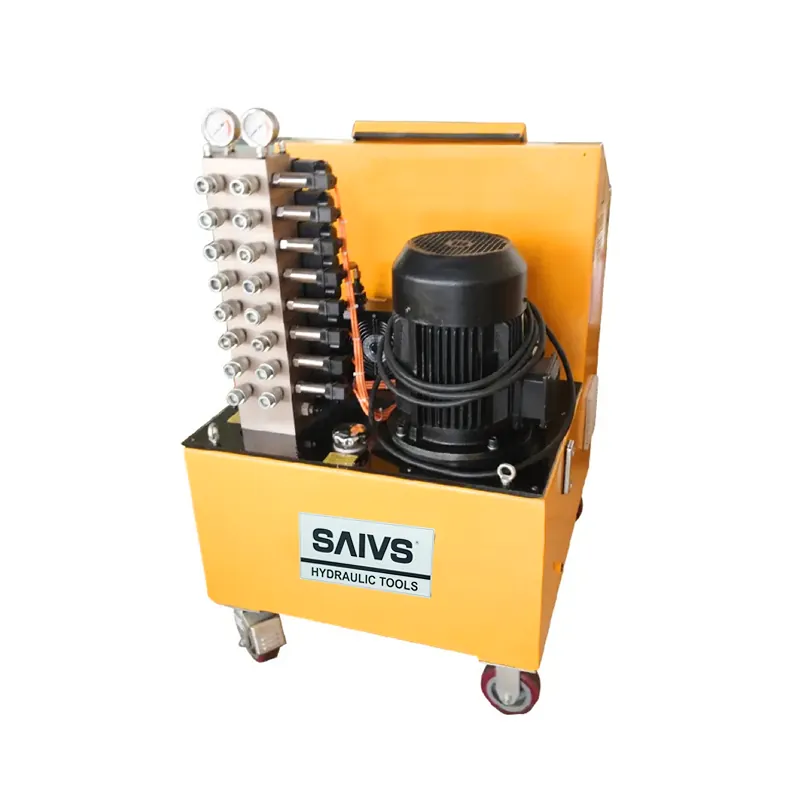

HLC, Double Acting, PLC Synchronous Lifting Systems
-
Model: HLC-4 | HLC-8 | HLC-12 | HLC-16 | HLC-24
Lifting Points: 4-24
Synchronous Precision: ≤±0.5 mm
Motor Power: 2.2-5.5 KW
Working Pressure: 700 bar
Voltage: 380 AC/V
Oil Tank Capacity: 130-200 L
Weight: 215-428 kg
Control Mode: Pulse-Width-Modulation
Acting Way: Double Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HLE, Intelligent quantitative, Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLA , Double Acting，PLC Synchronous Lifting Systems
Description
Product Line: Industrial Tools
Customizable with special requirement
This system uses a plunger hydraulic pump with balance valves to control the lifting and lowering of Hydraulic Cylinders, ensuring synchronization and preventing hydraulic impact. It features pressure and displacement sensors to monitor load weight and lifting height in real time. The electric control system, powered by PLC, continuously adjusts displacement errors to maintain synchronization, based on sensor data and commands from the master control station. The system also ensures safe operation, preventing free fall in case of power failure.

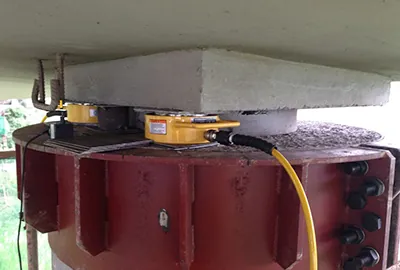

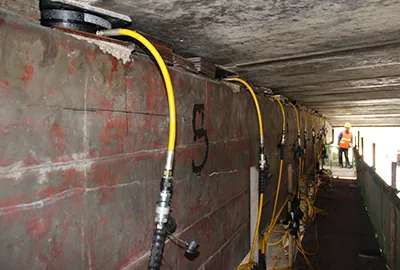

Applications
|
|
Series Comparison
| Model | Lifting Points | Synchronous Precision | Motor Power | Voltage | Working Pressure | Flow | Oil Tank Capacity | Dimensions | Weight |
| (mm) | (KW) | (AC/V) | (MPa) | (L) | (L) | (mm) | (kg) | ||
| HLC-4 | 4 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 215 |
| HLC-8 | 8 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 235 |
| HLC-12 | 12 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 755x865x1205 | 255 |
| HLC-16 | 16 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 200 | 1090x950x1120 | 375 |
| HLC-24 | 24 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 200 | 1090x950x1120 | 428 |
