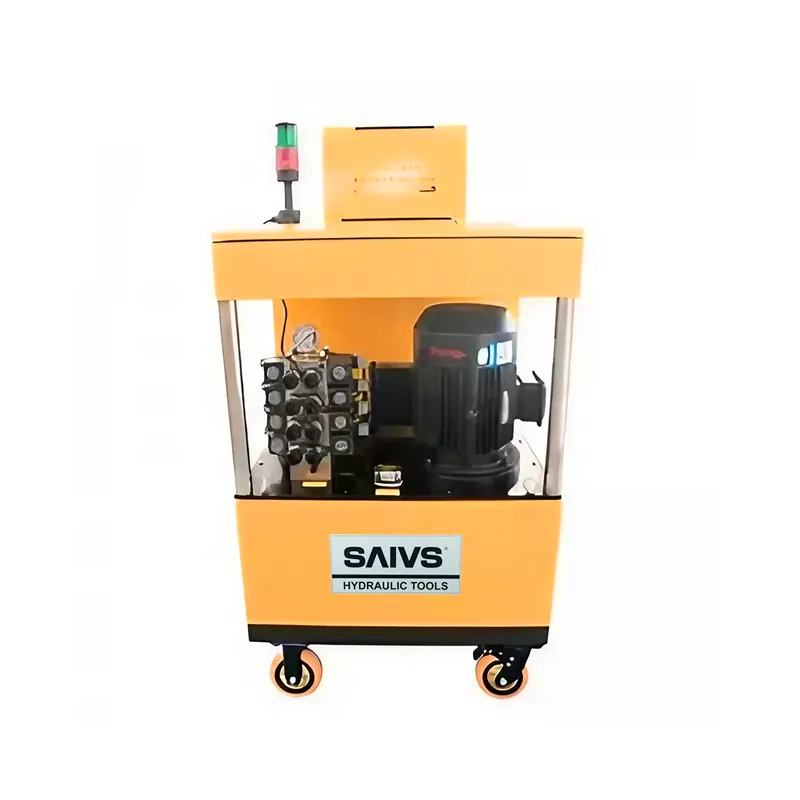

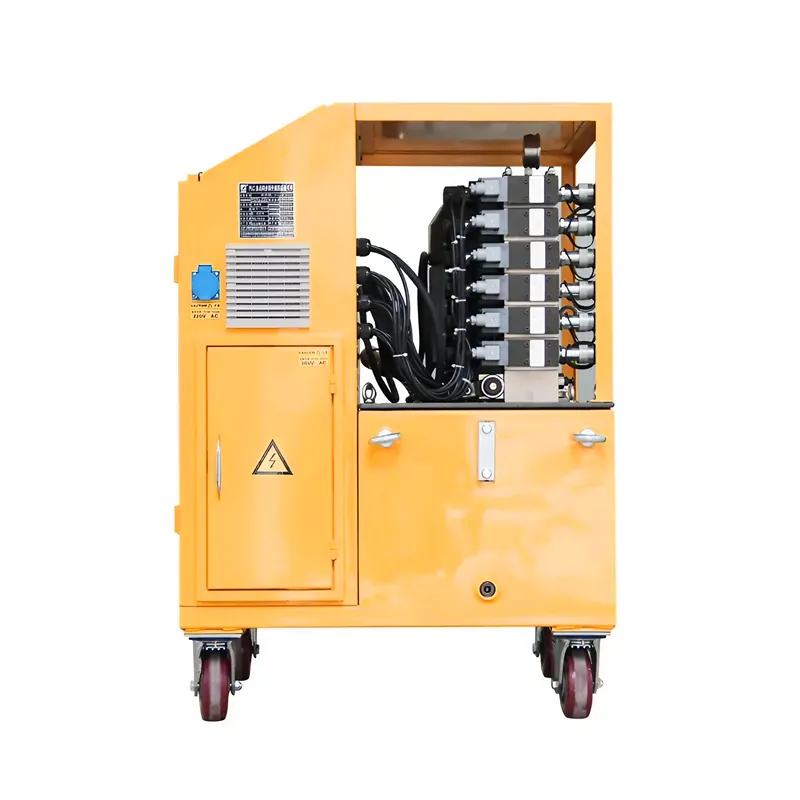

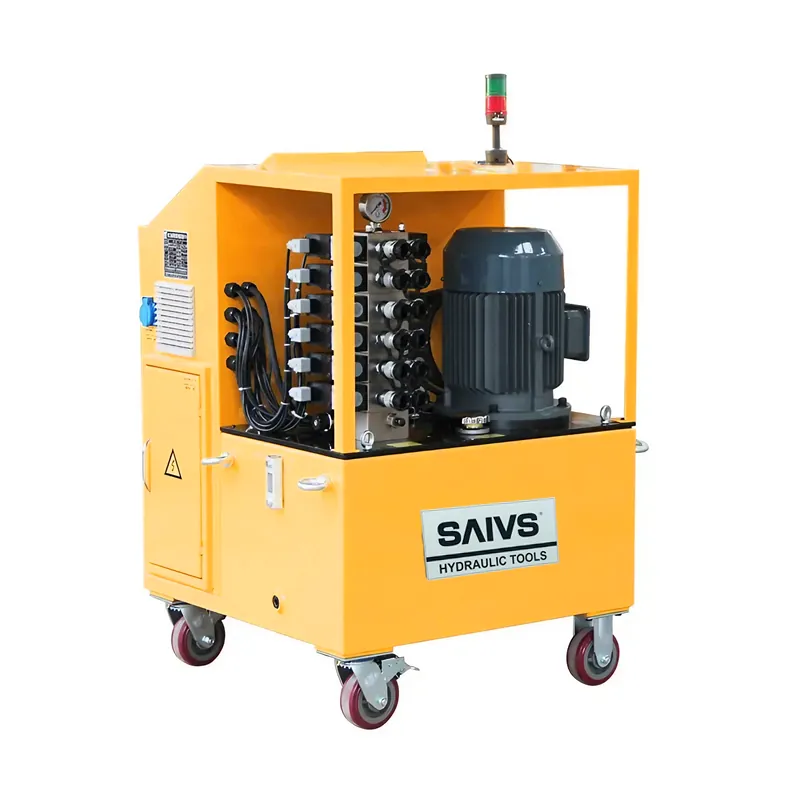

HLB, Single Acting, PLC Synchronous Lifting Systems
-
Model: HLB-4 | HLB-8 | HLB-12 | HLB-16 | HLB-24
Lifting Points: 4-24
Synchronous Precision: ≤±0.5 mm
Motor Power: 2.2-5.5 KW
Working Pressure: 700 bar
Voltage: 380 AC/V
Oil Tank Capacity: 130-200 L
Weight: 215-428 kg
Structure: Piston Type
Control Mode: Pulse-Width-Modulation
Acting Way: Single Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HLE, Intelligent quantitative, Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLA , Double Acting，PLC Synchronous Lifting Systems
Description
Product Line: Industrial Tools
Customizable with special requirement
This Hydraulic System utilizes a pressure and displacement closed-loop control mode for multi-point control, commonly used in tasks such as replacing highway bridge rubber bearings, overpass lifting, and equipment rectification. It features Pulse-Width-Modulation control, a human-computer interface, and an alarm system. The system includes a high-pressure pump station, control valves, Hydraulic Cylinders, and monitoring devices. By regulating the on-off valve frequency, continuous flow adjustment is achieved, enabling precise synchronization of hydraulic cylinders and load balancing during lifting and weighing operations.

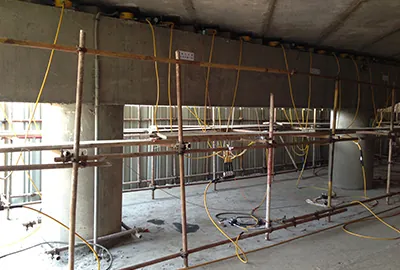

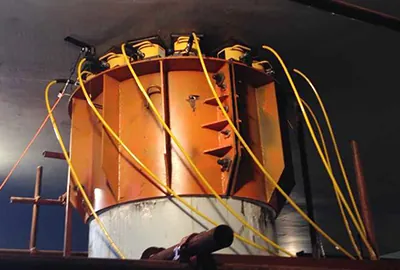

Applications
|
|
Series Comparison
| Model | Lifting Points | Synchronous Precision | Motor Power | Voltage | Working Pressure | Flow | Oil Tank Capacity | Dimensions | Weight |
| (mm) | (KW) | (AC/V) | (MPa) | (L) | (L) | (mm) | (kg) | ||
| HLB-4 | 4 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 750x860x1200 | 215 |
| HLB-8 | 8 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 750x860x1200 | 235 |
| HLB-12 | 12 | ≤±0.5 | 2.2 | 380 | 70 | 2 | 130 | 750x860x1200 | 255 |
| HLB-16 | 16 | ≤±0.5 | 5.5 | 380 | 70 | 5 | 200 | 1090x950x1120 | 375 |
| HLB-24 | 24 | ≤±0.5 | 5.5 | 380 | 70 | 5 | 200 | 1090x950x1120 | 428 |
