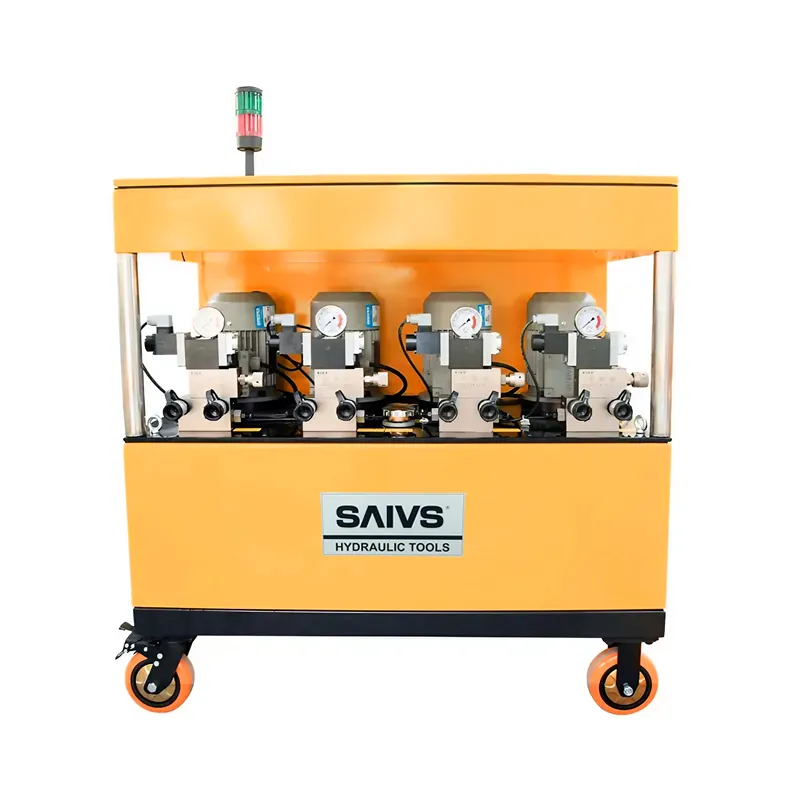

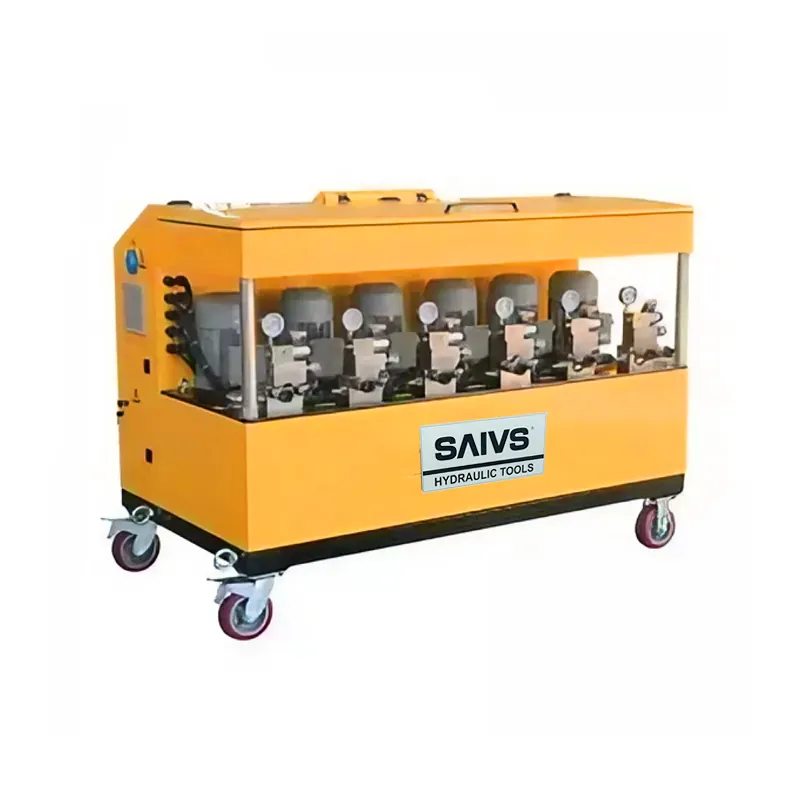

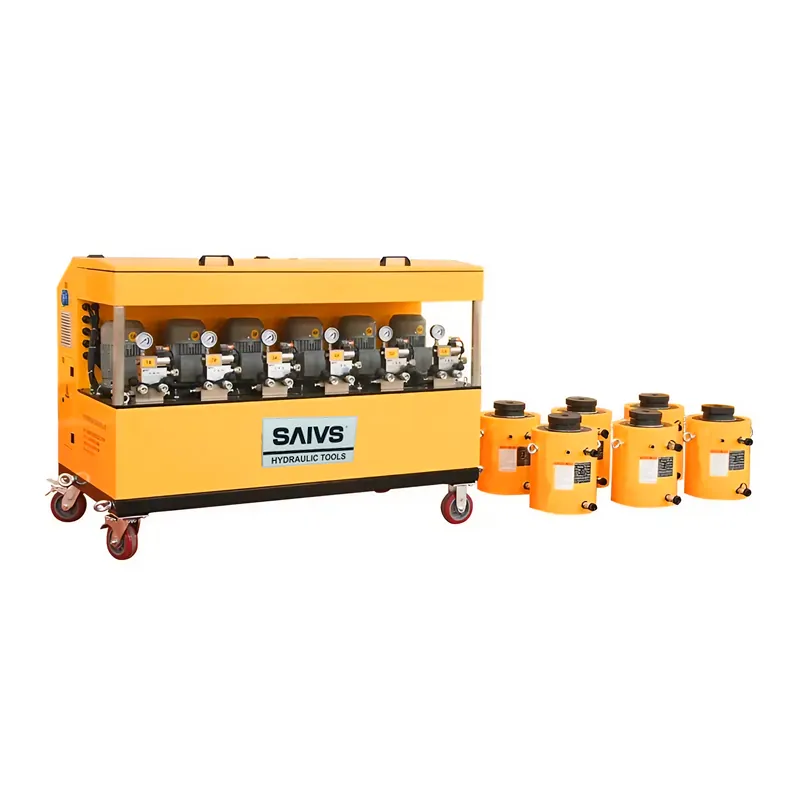

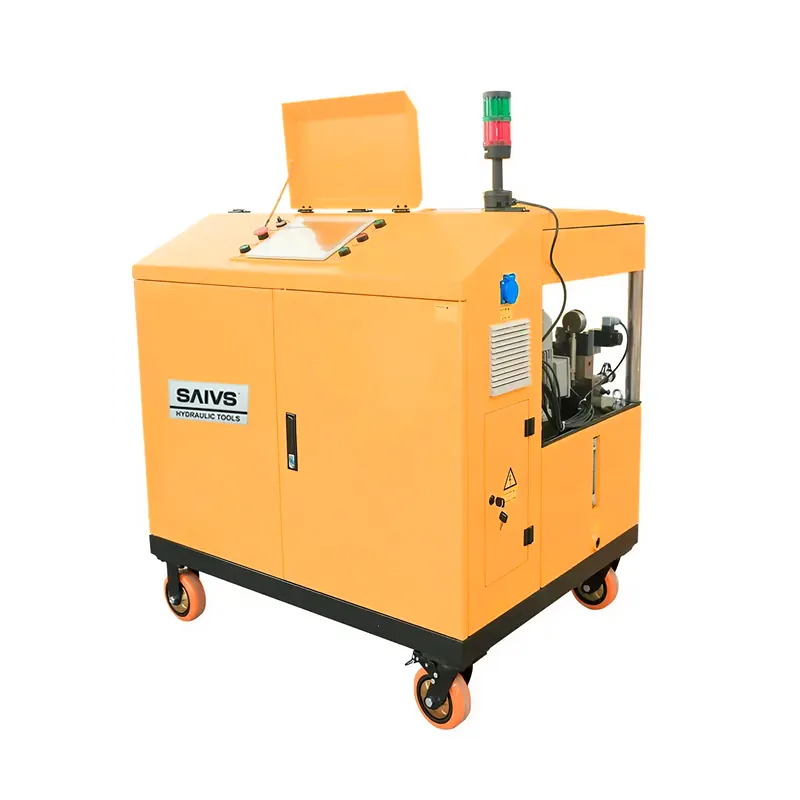

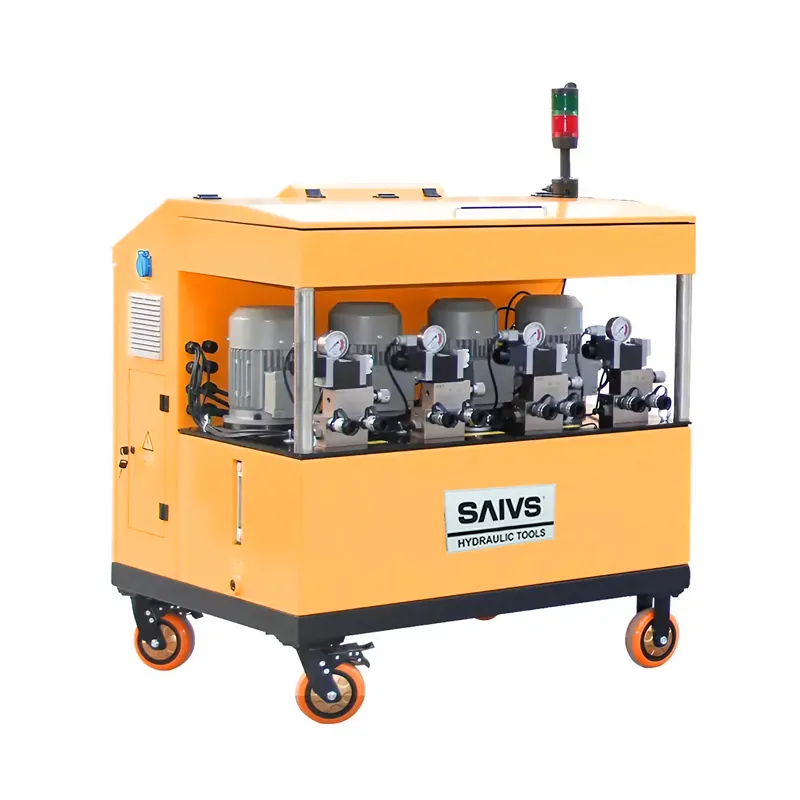

HLA , Double Acting，PLC Synchronous Lifting Systems
-
Model: HLA-2A | HLA-2B | HLA-2C | HLA-4A | HLA-4B | HLA-4C
Lifting Points: 2-4
Synchronous Precision: ≤±0.2 mm
Motor Power: 1.1-5.5 KW
Working Pressure: 700 bar
Voltage: 380 AC/V
Oil Tank Capacity: 130-500 L
Weight: 175-545 kg
Structure: Piston Type
Acting Way: Double Acting
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
- HLE, Intelligent quantitative, Synchronous Lifting Systems HLD, Multi-point, PLC Synchronous Lifting Systems HLC, Double Acting, PLC Synchronous Lifting Systems HLB, Single Acting, PLC Synchronous Lifting Systems HLA , Double Acting，PLC Synchronous Lifting Systems
Description
Product Line: Industrial Tools
Customizable with special requirement
This Hydraulic System uses a closed-loop automatic control mode for multi-point control, suitable for heavy load weighing, synchronous pushing, lifting, lowering, attitude leveling, and voltage regulation. With frequency conversion speed regulation, it continuously adjusts output flow, ensuring smooth and synchronized cylinder control during lifting and lowering. It supports up to 99 synchronized points, with advanced safety measures, precise load distribution, and traceable lifting data for reliable operation.

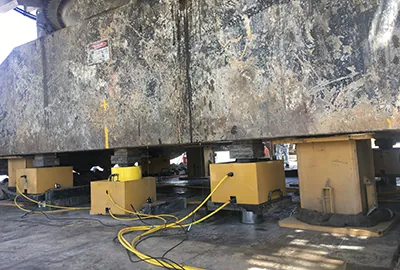

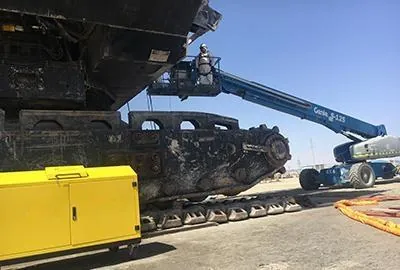

Application
|
|
Series Comparison
| Model | Lifting Points | Synchronous Precision | Motor Power | Voltage | Working Pressure | Flow | Oil Tank Capacity | Dimensions | Weight |
| (mm) | (KW) | (AC/V) | (MPa) | (L) | (L) | (mm) | (kg) | ||
| HLA-2A | 2 | ≤±0.2 | 1.1 | 380 | 70 | 2x1 | 130 | 750x810x1140 | 175 |
| HLA-2B | 2 | ≤±0.2 | 2.2 | 380 | 70 | 2x2 | 130 | 750x810x1140 | 235 |
| HLA-2C | 2 | ≤±0.2 | 5.5 | 380 | 70 | 2x5 | 250 | 950x870x1160 | 295 |
| HLA-4A | 4 | ≤±0.2 | 1.1 | 380 | 70 | 4x1 | 200 | 1100x870x1150 | 345 |
| HLA-4B | 4 | ≤±0.2 | 2.2 | 380 | 70 | 4x2 | 250 | 1200x810x1110 | 425 |
| HLA-4C | 4 | ≤±0.2 | 5.5 | 380 | 70 | 4x5 | 500 | 1100x950x1120 | 545 |
