HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders

5out of5 based on7 reviews | Write a review

Model:HCRL506

Capacity:50 ton
Stroke:150 mm | 5.91 inches
Weight:30 kg | 66.1 lbs
Push Oil Capacity:1025 cm³
Cylinder Effective Area:68.4 m²

Max.pressure:700 Bar/10000 Psi

Return Type:Double-Acting Hydraulic Return

Plunger Type:Solid

Brand Name:Replacement Enerpac's HCRL506
HCRL30012, 300 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL30010, 300 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL3008, 300 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL3006, 300 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders HCRL25012, 250 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL25010, 250 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL2508, 250 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL2506, 250 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders HCRL20012, 200 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL20010, 200 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL2008, 200 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL2006, 200 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders HCRL15012, 150 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL15010, 150 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL1508, 150 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL1506, 150 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders HCRL10012, 100 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL10010, 100 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL1008, 100 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL1006, 100 Ton, 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders HCRL5012, 50 Ton, 300 mm 11.81 in Stroke, Double Acting Lock Nut Cylinders HCRL5010, 50 Ton, 250 mm 9.84 in Stroke, Double Acting Lock Nut Cylinders HCRL508, 50 Ton, 200 mm 7.87 in Stroke, Double Acting Lock Nut Cylinders HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders

PDF DOWNLOAD

Description

- Model:HCRL506

- Product Line: Industrial Tools

- Type: Hydraulic Cylinder Ram, Hydraulic Jacks

- Hydraulically controlled fast retraction

- Lock nut provides mechanical load holding for a safe work environment

- Designed to withstand up to 10% side-load of maximum capacity

- An integrated tilt saddle allows up to 5 degrees of misalignment

- Hardened surface resists side-loading and cyclic wear

- Weather protected, inside and out

- Replaceable bearings enclose the plunger externally and internally for support

- Certified lifting eyes, base mounting holes, and collar thread as standard

- Stop-ring to prevent plunger blow-out

- Low friction lock nut, spin easy, save time and effort

- The HCRL-Series Cylinders are available up to 1000-ton capacity and 600mm stroke upon request.

- Material:CR40

- Manufacturer:SAIVS

- Country of Origin:China

- Minimum Order:1 Piece

- Customizable with special requirement

Image Gallery

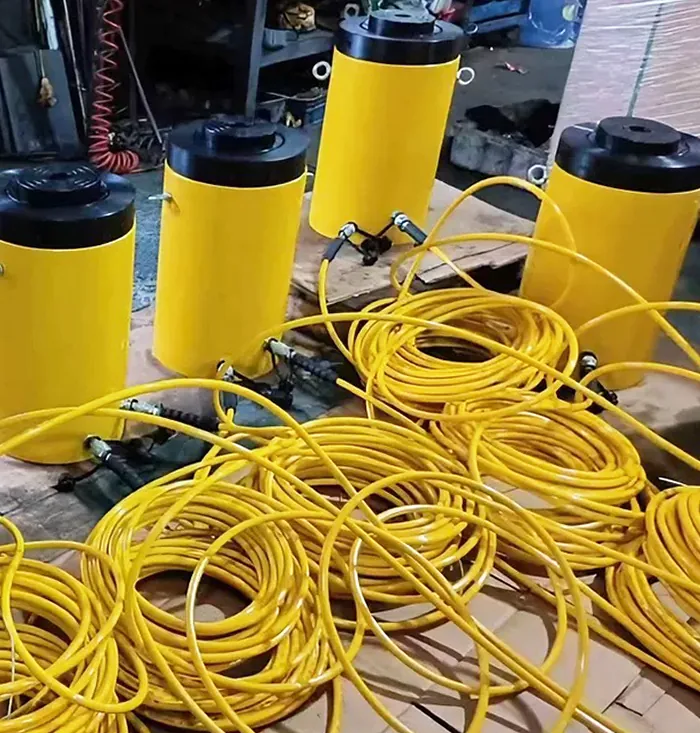

HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders 1 Image-SAIVS

HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders 2 Image-SAIVS

HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders 3 Image-SAIVS

HCRL506, 50 Ton , 150 mm 5.91 in Stroke, Double Acting Lock Nut Cylinders 4 Image-SAIVS

Dimensions

Collapsed Height/mm(A)	310
Extended Height/mm(B)	460
Outside Dia/mm(D)	130
Cylinder Bore Dia/mm(E)	100
Plunger Dia/mm(F)	Tr90X4
Base To Advance Port/mm(H1)	41
Base To Retract Port/mm(H2)	27
Saddle Dia/mm(J)	77
Saddle Protr. /mm(K)	15
Lock Nut Height/mm(S)	26
Base Mounting Holes Bolt Circle/mm(U)	105
Base Mounting Holes Thread(V)	M12X1.75
Base Mounting Holes Min Thread Depth/mm(Z)	22
Thread Size(W)	M130X2
Thread Length/mm(X)	42

Series Comparison

Model Number	Capacity/Ton	Stroke/mm	Weight/Kg	Cylinder Effective Area/cm2	Push Oil Capacity/cm3	Pill Oil Capacity/cm3	Collapsed Height/mm(A)	Extended Height/mm(B)	Outside Dia/mm(D)	Cylinder Bore Dia/mm(E)	Plunger Dia/mm(F)	Base To Advance Port/mm(H1)	Base To Retract Port/mm(H2)	Saddle Dia/mm(J)	Saddle Protr. /mm(K)	Lock Nut Height/mm(S)	Base Mounting Holes Bolt Circle/mm(U)	Base Mounting Holes Thread(V)	Base Mounting Holes Min Thread Depth/mm(Z)	Thread Size(W)	Thread Length/mm(X)	Weight/Kg
HCRL506	50	150 mm \| 5.91 inches	30 kg \| 66.1 lbs	68.4	1025	86	310	460	130	100	Tr90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	30
HCRL508	50	200 mm \| 7.87 inches	36 kg \| 79.4 lbs	68.4	1367	115	377	577	130	100	Tr90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	36
HCRL5010	50	250 mm \| 9.84 inches	40 kg \| 88.2 lbs	68.4	1709	143	427	677	130	100	Tr90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	40
HCRL5012	50	300 mm \| 11.81 inches	45 kg \| 99.2 lbs	68.4	2051	172	477	777	130	100	Tr90X4	41	27	77	15	26	105	M12X1.75	22	M130X2	42	45
HCRL1006	100	150 mm \| 5.91 inches	64 kg \| 141 lbs	141.4	2121	236	346	496	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	64
HCRL1008	100	200 mm \| 7.87 inches	77 kg \| 169.8 lbs	141.4	2827	314	421	621	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	77
HCRL10010	100	250 mm \| 9.84 inches	85 kg \| 187.4 lbs	141.4	3534	393	471	721	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	85
HCRL10012	100	300 mm \| 11.81 inches	94 kg \| 207.2 lbs	141.4	4241	471	521	821	185	140	TR120X60	50	36	77	15	36	150	M12X1.75	22	M185X2	57	94
HCRL1506	150	150 mm \| 5.91 inches	97 kg \| 213.8 lbs	214.4	3216	236	359	509	222	170	Tr150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	97
HCRL1508	150	200 mm \| 7.87 inches	116 kg \| 255.7 lbs	214.4	4288	314	434	634	222	170	Tr150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	116
HCRL15010	150	250 mm \| 9.84 inches	129 kg \| 284.4 lbs	214.4	5360	393	484	734	222	170	Tr150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	129
HCRL15012	150	300 mm \| 11.81 inches	142 kg \| 313 lbs	214.4	6432	471	534	834	222	170	Tr150X6	46	32	126	13	45	185	M12X1.75	22	M222X3	70	142
HCRL2006	200	150 mm \| 5.91 inches	145 kg \| 319.7 lbs	285.9	4288	530	399	549	260	200	Tr170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	145
HCRL2008	200	200 mm \| 7.87 inches	168 kg \| 370.4 lbs	285.9	5718	707	469	669	260	200	Tr170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	168
HCRL20010	200	250 mm \| 9.84 inches	184 kg \| 405.7 lbs	285.9	7147	884	519	769	260	200	Tr170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	184
HCRL20012	200	300 mm \| 11.81 inches	200 kg \| 440.9 lbs	285.9	8577	1060	569	869	260	200	Tr170X6	71	49	126	13	50	215	M12X1.75	22	M260X3	79	200
HCRL2506	250	150 mm \| 5.91 inches	190 kg \| 418.9 lbs	351.9	5278	530	416	566	290	220	Tr190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	190
HCRL2508	250	200 mm \| 7.87 inches	224 kg \| 493.8 lbs	351.9	7037	707	491	691	290	220	Tr190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	224
HCRL25010	250	250 mm \| 9.84 inches	244 kg \| 537.9 lbs	351.9	8796	884	541	791	290	220	Tr190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	244
HCRL25012	250	300 mm \| 11.81 inches	265 kg \| 584.2 lbs	351.9	10556	1060	591	891	290	220	Tr190X6	71	49	160	15	55	245	M12X1.75	22	M290X3	85	265
HCRL3006	300	150 mm \| 5.91 inches	230 kg \| 507 lbs	424.1	6362	530	421	571	315	240	Tr210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	230
HCRL3008	300	200 mm \| 7.87 inches	269 kg \| 593 lbs	424.1	8482	707	496	696	315	240	Tr210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	269
HCRL30010	300	250 mm \| 9.84 inches	294 kg \| 648.2 lbs	424.1	10603	884	546	796	315	240	Tr210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	294
HCRL30012	300	300 mm \| 11.81 inches	319 kg \| 703.3 lbs	424.1	12723	1060	596	896	315	240	Tr210X6	71	49	160	15	55	260	M16X2	25	M315X3	94	319
