Flange Facing Machine for Facing Range 50-3000mm
-
Model: SFP/SFS
Spec.: 610-3000
Facing Range(O.D): 50-3000 mm（1.97-118.11 inches）
Mounting Range(I.D): 50-2800 mm
Tool Feed Stroke: 50-102 mm
Rotation Speed: 0-42 r/min
Air pressure: 0.8-1.0Mpa
Airconsumption: 2000L/min
Voltage: 1PH 220V
Frequency: 50Hz
Powersupply: 750-2000w
Country of Origin: China
Description
Product Line: Industrial Tools
Customizable with special requirement
The flange face processing machine is a high-precision and high-efficiency machine. The machine uses the latest linear and ball screw technology. The machine adopts an internal clamping method with a small working radius. It is fixed in the middle of a pipe or flange. It is used to process the inner hole, outer circle, flange end face, and various forms of sealing surfaces (RF, RTJ, etc.) of the flange, seal groove processing, etc.
Features
Compact design, light weight, easy to carry out
Modular design, easy to operate
Internally mounted, small working radius
Working direction not limited, high efficiency
Can be manual or automatic feed, high accuracy
Can process flange inner hole, flat face water line, continuous groove, outer circle, and various sealing surfaces (RF, RTJ, etc.)
The machine is widely used in the repair of flange sealing surfaces, and the repair and processing of flange surfaces of various metal materials such as cast iron, alloy structural steel, and stainless steel.

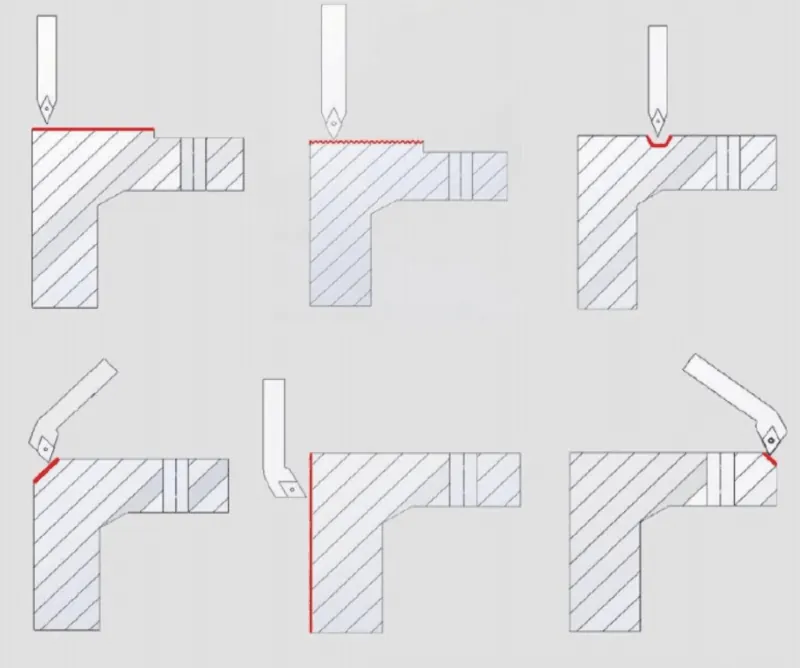

Machining Form
| No | Parts Name | No | Parts Name |
|---|---|---|---|

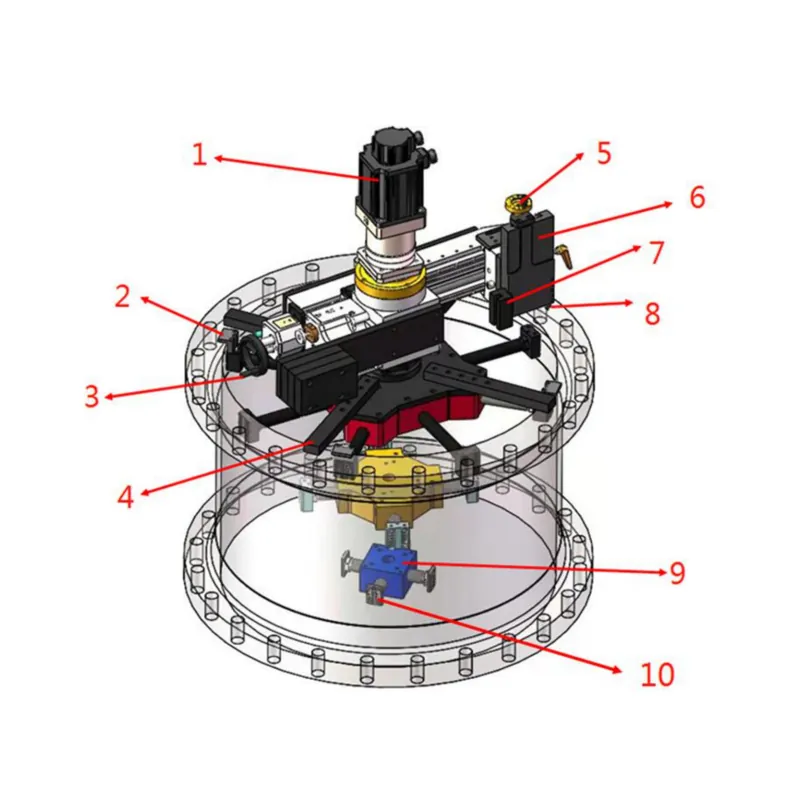

| 1 | Servo Motor | 6 | Tool holder |
| 2 | Slight Adjustment Block | 7 | Blades holder |
| 3 | Transverse Feed Handle | 8 | Blades |
| 4 | Balance Ruler | 9 | Expansion Block Base |
| 5 | Longitudinal Feed Handle | 10 | Expansion Block |
According to the size of the inner hole of the workpiece,choose a suitable Expansion Block Base(No.9)

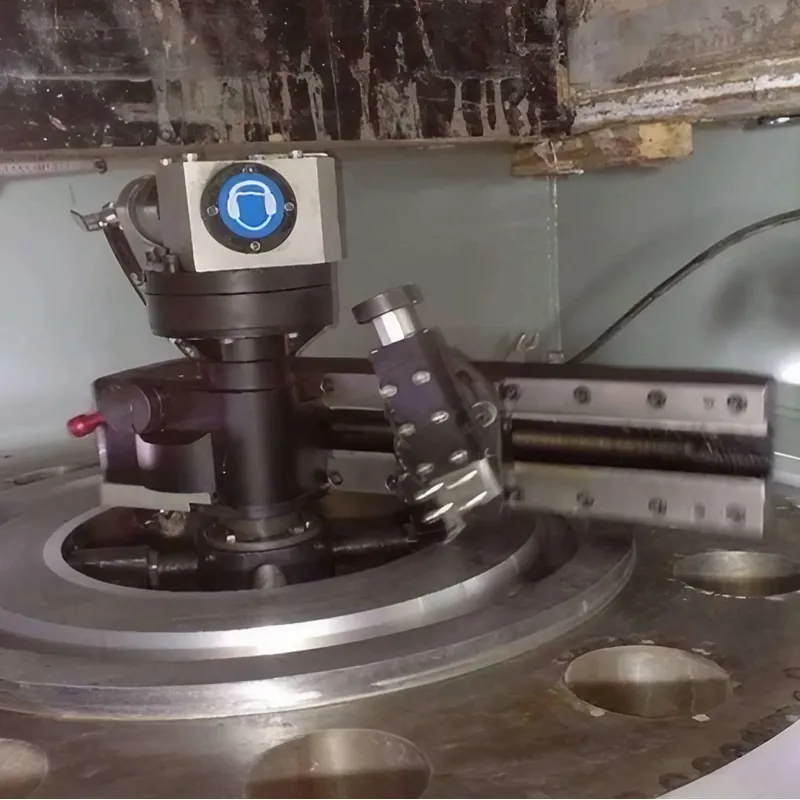

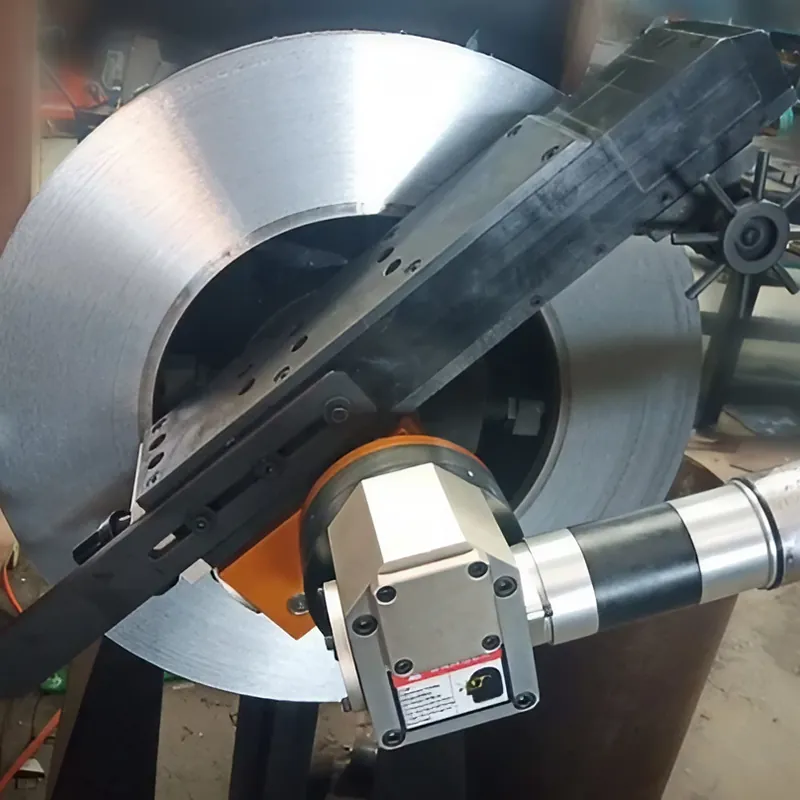

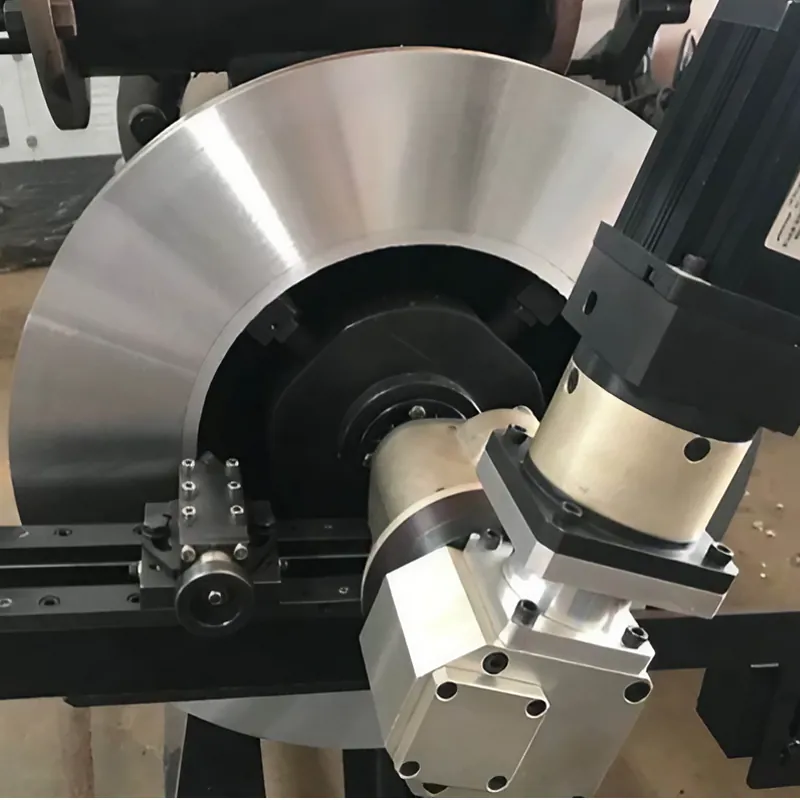

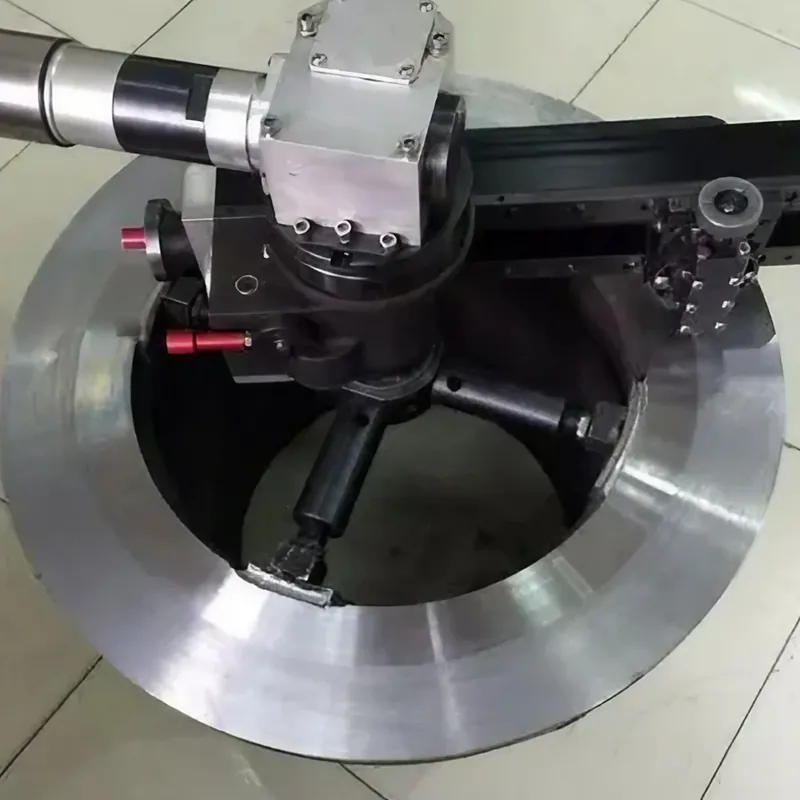

Image Gallery
Series Comparison
| Model | Spec. | Facing Range(O.D) | Mounting Range(I.D) | Tool Feed Stroke | Tool holder Swivel Angle | Rotation Speed |
| 610 | 50-610mm | 50-508mm | 50mm | +-30° | 0-42r/min | |
| SFP | 1000 | 160-1000mm | 158-820mm | 102mm | +-30° | 0-33r/min |
| SFS | 1650 | 500-1650mm | 500-1500mm | 102mm | +-30° | 0-22r/min |
| 2000 | 690-2200mm | 690-2000mm | 102mm | +-360° | 0-20r/min | |
| 3000 | 1150-3000mm | 1120-2800mm | 102mm | +-360° | 3-12r/min |
Note:Pneumatic(SFP)
Servo Motor-Electric(SFS)
