FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool
-
Model:FA4TMSTD
Series: FA
Alignment Capacity: 4 ton | 35.6 kN
Min. Bolt Size: 24mm | 0.95inch
Type: Mechanical
Weight: 8.6 kg | 19.0 lbs
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's FA4TMSTD
- FA9TMSTD, 10 Ton 31.5 mm, Integral Hydraulic Flange Alignment Tool FA9TESTD, 10 Ton 31.5 mm, Hydraulic Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool
Description
Model:FA4TMSTD
Product Line: Industrial Tools
Customizable with special requirement
The FA4TM Mechanical Linear & Rotational Alignment Tool is a simple solution to medium-diameter, medium-pressure flange joint misalignment.
The FA4TMSTD Set includes:
1 x FA4TM Tool
1 x 68N·m (50ft·lb) Torque Wrench
1 x 22mm Socket
1 x Ratchet Strap
1 x Instruction Manual
1 x Carry-Case
Image Gallery

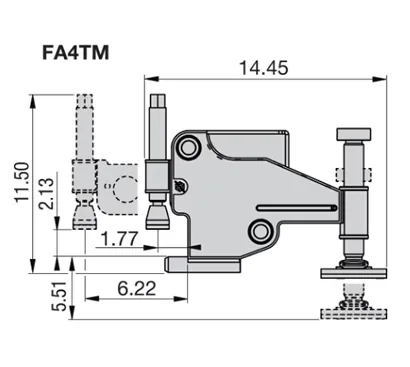

Dimensions
| Alignment Capacity(Ton) | 4 |
| Min. Bolt Size(mm) | 24 |
| Min. Bolt Size(inch) | 0.95 |
| Flange Thickness(mm) | 30-133 |
| Flange Thickness(inch) | 1.18-5.23 |
| Type | Mechanical |
| Weight (kg) | 8.6 |
Series Comparison
| Model | Alignment Capacity(Ton) | Min. Bolt Size(mm) | Min. Bolt Size(inch) | Flange Thickness(mm) | Flange Thickness(inch) | Type | Weight (kg) |
| FA1TMSTD | 1 ton | 8.9 kN | 16 | 0.63 | 14-82 | 0.55-3.29 | Mechanical | 2 | 4.4 lbs |
| FA4TMSTD | 4 ton | 35.6 kN | 24 | 0.95 | 30-133 | 1.18-5.23 | Mechanical | 8.6 | 19.0 lbs |
| FA9TMSTD | 10 ton | 89.0 kN | 31.5 | 1.24 | 93-228 | 3.66-9 | Integral Hydraulic | 16.5 | 36.4 lbs |
| FA9TESTD | 10 ton | 89.0 kN | 31.5 | 1.24 | 93-228 | 3.66-9 | Split Hydraulic | 16.5 | 36.4 lbs |
