FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool
-
Model:FA1TMSTD
Series: FA
Alignment Capacity: 1 ton | 8.9 kN
Min. Bolt Size: 16mm | 0.63inch
Type: Mechanical
Weight: 2 kg | 4.4 lbs
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's FA1TMSTD
- FA9TMSTD, 10 Ton 31.5 mm, Integral Hydraulic Flange Alignment Tool FA9TESTD, 10 Ton 31.5 mm, Hydraulic Flange Alignment Tool FA4TMSTD, 4 Ton 24 mm, Mechanical Flange Alignment Tool FA1TMSTD, 1 Ton 16 mm, Mechanical Flange Alignment Tool
Description
Model:FA1TMSTD
Product Line: Industrial Tools
Customizable with special requirement
The FA1TM Mechanical Flange Alignment Tool is a simple solution to smaller diameter lower pressure flange joint misalignment.
The FA1TMSTD Set includes:
1 x FA1TM Tool
1 x Mini Ratchet Strap
1 x Instruction Manual
Image Gallery

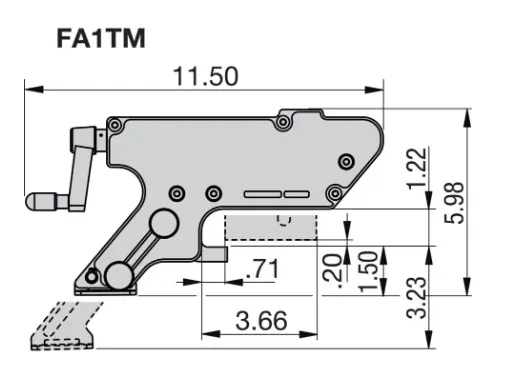

Dimensions
| Alignment Capacity(Ton) | 1 |
| Min. Bolt Size(mm) | 16 |
| Min. Bolt Size(inch) | 0.63 |
| Flange Thickness(mm) | 14-82 |
| Flange Thickness(inch) | 0.55-3.29 |
| Type | Mechanical |
| Weight (kg) | 2 |
Series Comparison
| Model | Alignment Capacity(Ton) | Min. Bolt Size(mm) | Min. Bolt Size(inch) | Flange Thickness(mm) | Flange Thickness(inch) | Type | Weight (kg) |
| FA1TMSTD | 1 ton | 8.9 kN | 16 | 0.63 | 14-82 | 0.55-3.29 | Mechanical | 2 | 4.4 lbs |
| FA4TMSTD | 4 ton | 35.6 kN | 24 | 0.95 | 30-133 | 1.18-5.23 | Mechanical | 8.6 | 19.0 lbs |
| FA9TMSTD | 10 ton | 89.0 kN | 31.5 | 1.24 | 93-228 | 3.66-9 | Integral Hydraulic | 16.5 | 36.4 lbs |
| FA9TESTD | 10 ton | 89.0 kN | 31.5 | 1.24 | 93-228 | 3.66-9 | Split Hydraulic | 16.5 | 36.4 lbs |
