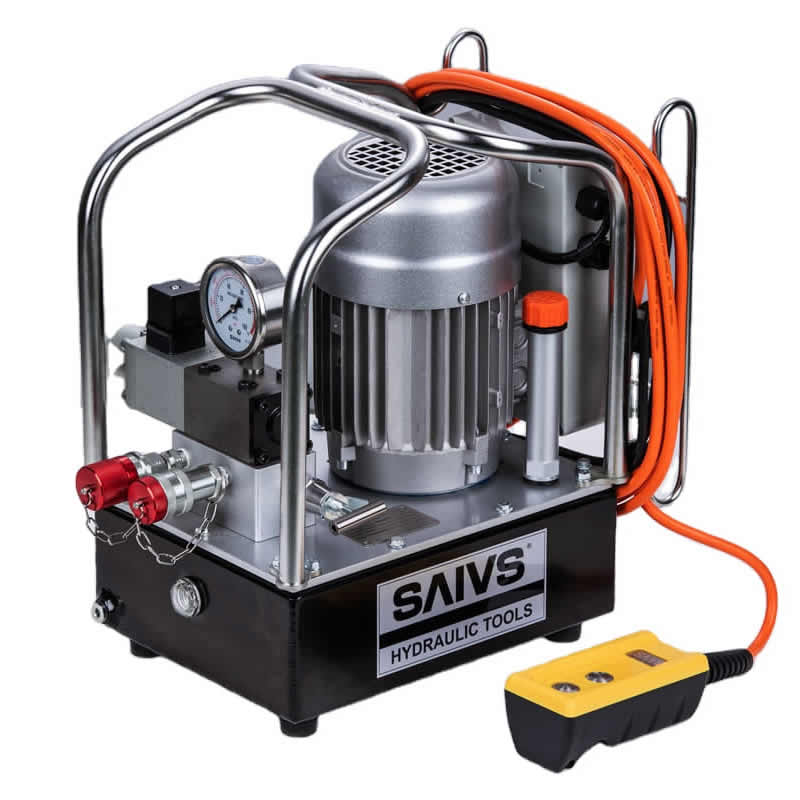

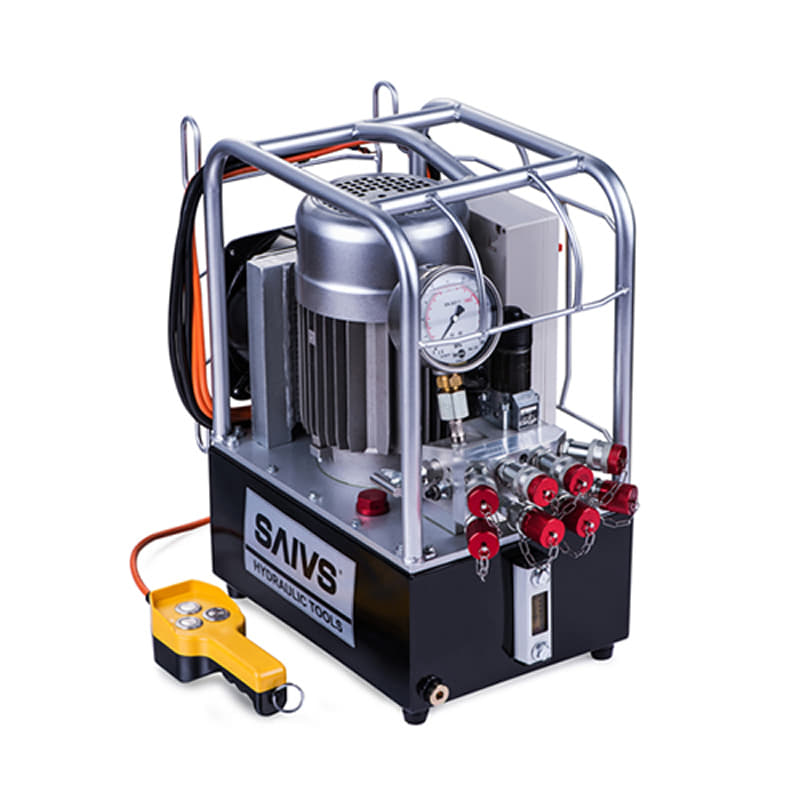

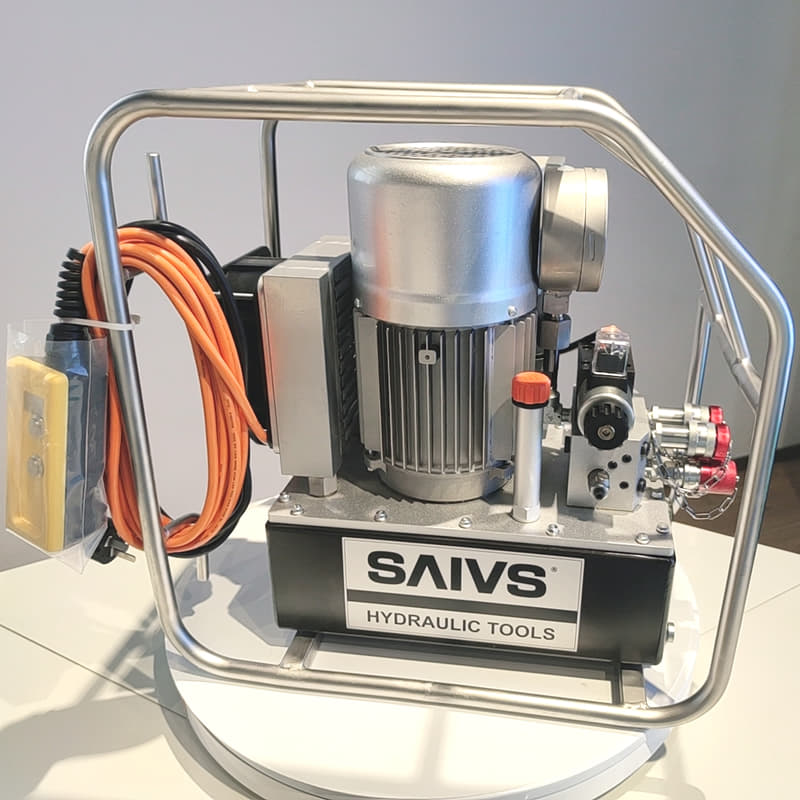

Electric Hydraulic Torque Wrench Pumps SWP Series
-
Oil Capacity: 5L
Flow at Rated Pressure: 0.7- 0.85 L/ min
Motor Size: 0.9-1.1KW
Max. Operating Pressure: 700 bar / 10000PSI
Model:SWP1000/5000/8000
Weight: 18 - 28 KG
Manufacturer:SAIVS
Country of Origin:China
Minimum Order:1Piece
- SWP8000 Electric Hydraulic Torque Wrench Pumps SWP5000 Electric Hydraulic Torque Wrench Pumps SWP1000 Electric Hydraulic Torque Wrench Pumps
Description
Product Line: Industrial Tools
Customizable with special requirement
High-efficiency pump features with 50% higher speed and efficiency than two stage pump.

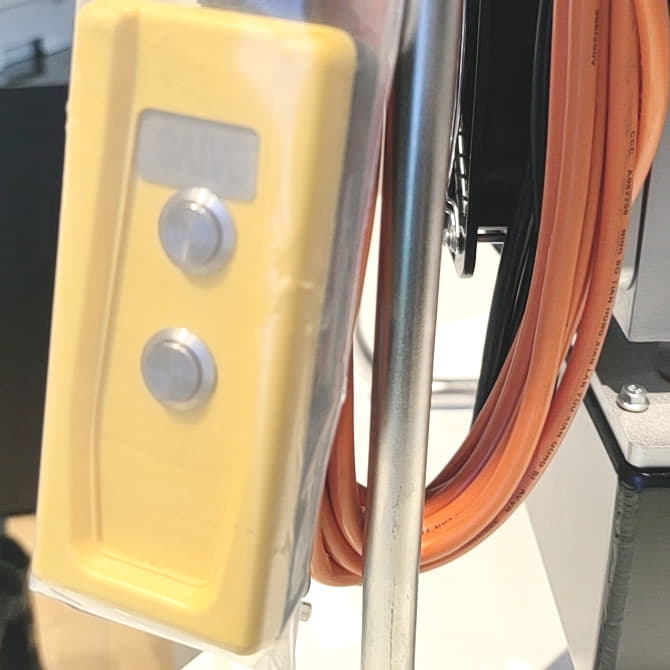

External start up switch of the motor for greater ease of remote operation.
Optimized PCB design to achieve powerful functions: automatic cut-off in one minute after no-operation, automatic decompression after stop, overload protection.
Advance external heat sink increase pump reliability of continuous operation.
Advanced pressure control valve fits through long time continuous operation and provides stable pressure.
Triphase brush-less motor provides for high efficiency, low maintenance and long life.
Pump head is built for long-life and low maintenance, Compact and Light weight, high speed, large flow, high efficiency.
Auto cycle feature provides continuous cycle operation of the Torque Wrench as long as the advance button is pressed. great ease in operating.
Extended reading：
Electric Hydraulic Torque Wrench pumps are tools used in applications that require high levels of torque or force.
These devices work by leveraging electric power to drive a hydraulic pump,
which in turn powers hydraulic torque wrenches to allow for the precise tightening or loosening of bolts and other fasteners.
Electric hydraulic torque wrench pumps are designed to be durable and easy to use,
with features such as automatic shut-off valves or gauges to ensure accurate and safe operation.
They are available in various sizes and configurations to fit different types of hydraulic torque wrenches and can accommodate different levels of torque or force requirements.
These pumps are commonly used in industries such as construction, oil and gas, and manufacturing,
where precision and speed are essential to the success of a project. By using electric power to drive the hydraulic system,
these pumps can provide the necessary torque or force quickly and efficiently, saving time and reducing labor costs.
Overall, electric hydraulic torque wrench pumps are powerful and reliable tools that are essential for many industrial applications where precise and controlled torque or force is required.
Dimensions
| Model No. | Oil Flow (L/min) | Pressure (Mpa) | Power | Oil Capacity | Input Power* | Weight | Dimensions | ||||
| High Pressure | Middle Pressure | Low Pressure | High Pressure | Middle Pressure | Low Pressure | kw | L | kg | L x W x H(mm) | ||
| SWP5000 | 0.85 | 1.7 | 7.5 | 70 | 28 | 7 | 1.1 | 5 | 1Ph 110-240V 50/60HZ | 28 | 450*330*460 |
| SWP1000 | 0.28 | / | 2.4 | 70 | / | 8 | 0.37 | 4 | 1Ph 110-240V /50HZ | 18 | 345*210*395 |
Video
FAQs
- the pump is not turning on or operating properly.
- make sure the power cord is fully plugged in and not damaged.
- check that the outlet has power and that the circuit breaker hasn't tripped.
- verify that the control valve is in the correct position and that the hoses are correctly connected.
- the pump is overheating.
- inspect the oil level and make sure it's at the recommended level.
- ensure that the cooling system is functioning properly.
- check for obstructions in the air filter or vents that may be restricting airflow.
- the pump is making unusual noises.
- look for loose connections or components, and tighten as necessary.
- check the oil level and quality to ensure they meet specification.
- inspect the pump for worn or damaged parts that may need replacement.
- the pump is leaking fluid.
- check for leaks at all connection points, including hoses, fittings, and the pump itself.
- ensure that all connections are tight and free of damage.
- inspect the seals and gaskets for wear or damage and replace if necessary.
- the pump is producing low pressure output.
- check the oil level and make sure it's at the recommended level.
- verify that the filter is clean and not obstructed.
- confirm that the control valve is properly adjusted and that the hoses are not kinked or otherwise damaged.
