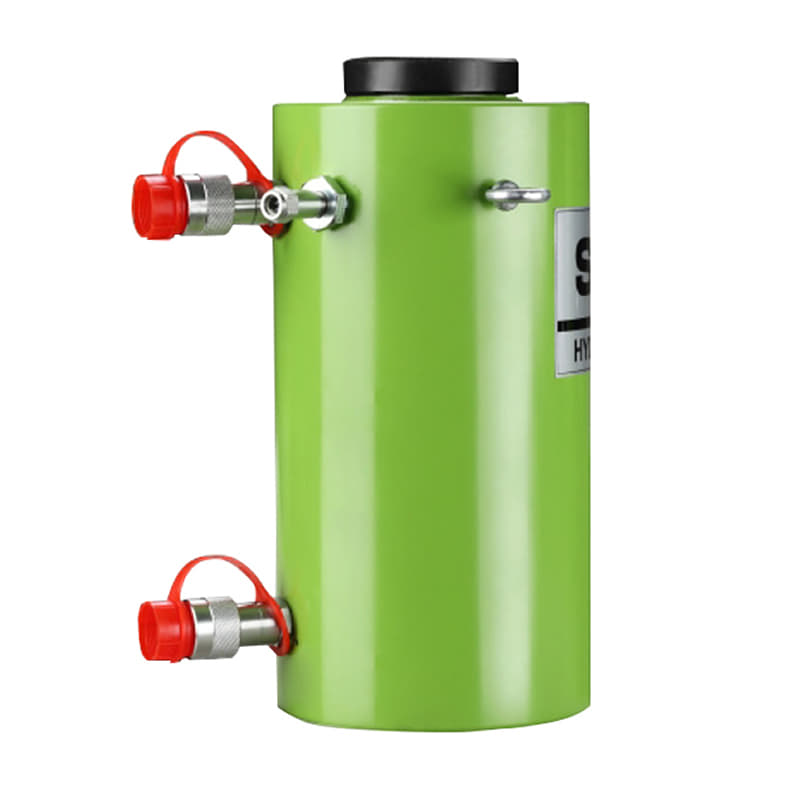

HCR Series Double-Acting High Tonnage Cylinders Lift Jack

5out of5 based on18 reviews | Write a review

Capacity: 50-800ton
Stroke: 50-300mm
Max.pressure: 700bar/10000psi
Bolt Circle: 70-380 mm
Thread: 4-M16, 4-M24
Thread Depth: 13-24 mm
Weight: 21.5-1092 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
CONTACT NOW
PDF VIEW CATALOGUE

Description

Double Acting, for positive retraction.

Hard chrome plated high quality steel plungers.

Plunger wiper reduces contamination, extending cylinder life.

The exclusive guide Ring is designed absorbs eccentric loading without galling cylinder parts,reduces wear and extending life.

Built-in safety valve prevents accidental over-pressurization.

Special painted surface to increase corrosion resistance.

Easy fixturing with base mounting holes.

All model include quick couplings (NPT3/8"-18) and dust-proof cap.

Removable hardened saddles protect plunger during lifting and pressing.

According to different work environment, special cylinder could be Customized.

Flow control one-way check valve (optional):

To prevent the Hydraulic Cylinder from retracting in an instant and realize jacking at any position, a flow control one-way check valve can be selected to realize self-locking.

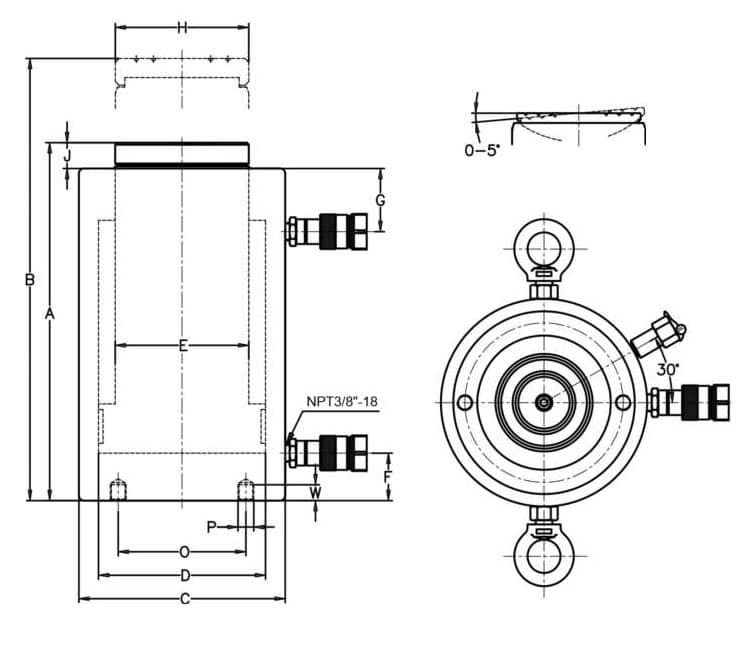

Dimensions

Cylinder Capacity	Stroke	Model Number	Max.Cylinder Capacity		Cylinder Effective Area		Oil Capacity		Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.	Base to Advance Port	Top to Return Port	Saddle Dia.	Saddle Protrusion from Plgr.	Mounting Hole Dimensions			Weight
Cylinder Capacity	Stroke		Max.Cylinder Capacity		Cylinder Effective Area		Oil Capacity		Collapsed Height	Extended Height	Outside Dia.	Cylinder Bore Dia	Plunger Dia.	Base to Advance Port	Top to Return Port	Saddle Dia.	Saddle Protrusion from Plgr.	Bolt Circle	Thread	Thread Depth	Weight
			Advance	Retract	Advance	Retract	Advance	Retract	A	B	C	D	E	F	G	H	J	O	P	W
ton	(mm)		(KN)		(cm2)		(cm3)		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)		(mm)	(kg)
50	50	CLRG-502	550	255	78.5	40	392	200	188	238	140	100	70	41	41	70	24	70	4-M16	13	21.5
	100	CLRG-504	550	255	78.5	40	784	400	238	338	140	100	70	41	41	70	24	70	4-M16	13	26
	150	CLRG-506	550	255	78.5	40	1176	600	288	438	140	100	70	41	41	70	24	70	4-M16	13	31
	200	CLRG-508	550	255	78.5	40	1568	800	338	538	140	100	70	41	41	70	24	70	4-M16	13	35
	300	CLRG-5012	550	255	78.5	40	2352	1200	438	738	140	100	70	41	41	70	24	70	4-M16	13	44
100	50	CLRG-1002	1077	490	153.9	75.4	770	377	216	266	188	140	100	54	54	100	24	100	4-M20	16	42
	100	CLRG-1004	1077	490	153.9	75.4	1540	754	266	366	188	140	100	54	54	100	24	100	4-M20	16	49
	150	CLRG-1006	1077	490	153.9	75.4	2310	1131	316	466	188	140	100	54	54	100	24	100	4-M20	16	56
	200	CLRG-1008	1077	490	153.9	75.4	3080	1508	366	566	188	140	100	54	54	100	24	100	4-M20	16	63
	300	CLRG-10012	1077	490	153.9	75.4	4620	2262	466	766	188	140	100	54	54	100	24	100	4-M20	16	70
150	50	CLRG-1502	1588	797	226.9	113.8	1134	565	226	276	228	170	120	58	58	120	24	130	4-M20	16	66
	100	CLRG-1504	1588	797	226.9	113.8	2269	1130	276	376	228	170	120	58	58	120	24	130	4-M20	16	78
	150	CLRG-1506	1588	797	226.9	113.8	3403	1696	326	476	228	170	120	58	58	120	24	130	4-M20	16	90
	200	CLRG-1508	1588	797	226.9	113.8	4538	2260	376	576	228	170	120	58	58	120	24	130	4-M20	16	102
	300	CLRG-15012	1588	797	226.9	113.8	6806	3390	476	776	228	170	120	58	58	120	24	130	4-M20	16	126
200	100	CLRG-2004	2198	875	314	137.4	3141	1374	296	396	268	200	150	64	68	150	29	160	4-M24	24	109
	150	CLRG-2006	2198	875	314	137.4	4712	2061	346	496	268	200	150	64	68	150	29	160	4-M24	24	121
	200	CLRG-2008	2198	875	314	137.4	6282	2748	396	596	268	200	150	64	68	150	29	160	4-M24	24	132
	300	CLRG-20012	2198	875	314	137.4	9423	4122	496	796	268	200	150	64	68	150	29	160	4-M24	24	155
300	100	CLRG-3004	3434	1654	490.6	236.3	4906	2363	327	427	320	250	180	74	76	180	35	220	4-M24	24	180
	200	CLRG-3008	3434	1654	490.6	236.3	9812	4726	427	627	320	250	180	74	76	180	35	220	4-M24	24	220
	300	CLRG-30012	3434	1654	490.6	236.3	14718	7089	527	827	320	250	180	74	76	180	35	220	4-M24	24	260
400	100	CLRG-4004	4308	1649	615.4	235.5	6154	2355	355	455	370	280	210	83	83	210	35	240	4-M24	24	255
	200	CLRG-4008	4308	1649	615.4	235.5	12308	4710	455	655	370	280	210	83	83	210	35	240	4-M24	24	310
	300	CLRG-40012	4308	1649	615.4	235.5	18462	7065	555	855	370	280	210	83	83	210	35	240	4-M24	24	375
500	100	CLRG-5004	5114	1948	803.8	313.2	8038	3133	375	475	420	320	250	93	93	246	35	280	4-M24	24	326
	200	CLRG-5008	5114	1948	803.8	313.2	16076	6266	475	675	420	320	250	93	93	246	35	280	4-M24	24	394
	300	CLRG-50012	5114	1948	803.8	313.2	24114	9399	575	875	420	320	250	93	93	246	35	280	4-M24	24	462
600	100	CLRG-6004	6300	2488	1017.4	401.9	10174	4019	436	536	500	360	280	113	115	280	40	300	4-M24	24	542
	200	CLRG-6008	6300	2488	1017.4	401.9	20348	8038	536	736	500	360	280	113	115	280	40	300	4-M24	24	634
	300	CLRG-60012	6300	2488	1017.4	401.9	30522	12057	636	936	500	360	280	113	115	280	40	300	4-M24	24	726
800	100	CLRG-8004	8790	2880	1256	452.2	12566	4522	477	577	550	400	320	113	113	320	57	380	4-M24	24	796
	200	CLRG-8008	8790	2880	1256	452.2	25132	9044	577	777	550	400	320	113	113	320	57	380	4-M24	24	944
	300	CLRG-80012	8790	2880	1256	452.2	37698	13566	677	977	550	400	320	113	113	320	57	380	4-M24	24	1092
