CLP1602, 160 ton 1619 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic Cylinders
-
Model:CLP1602
Capacity:160 ton | 1619 KN
Stroke:45 mm | 1.77 inches
Weight:45.5 kg | 100.3 lbs
Cylinder Effective Area:232.2 m²
Oil Capacity:1040 cm³
Max.pressure:700 Bar/10000 Psi
Return Type:Single-Acting Load Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's CLP1602
- CLP5002, 520 ton 5114 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP4002, 400 ton 3916 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2502, 260 ton 2567 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP2002, 200 ton 1999 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1602, 160 ton 1619 KN, 45mm 1.77 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP1002, 100 ton 1027 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP602, 60 ton 606 KN, 50mm 1.97 in Stroke, Single Acting Lock Nut Pancake Hydraulic CylindersCLP Series Single-Acting Low Profile Lock-Nut Hydraulic Cylinder
Description
- Model:CLP1602
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
- Single-Acting, load return.
- Low profile design, fit in the narrow application area.
- Special painted surface to increase corrosion resistance.
- Lock nut ensures the safety of long-time load holding.
- All models include quick couplings (NPT3/8"-18) and dust-proof caps.
- Overflow port function could limit the stroke.
- Removable hardened grooved saddles.
- ALL CLP-Series cylinders include integral tilt saddles with maximum tilt angles up to 4°.
- Select SAIVS high-quality high-pressure hoses.
- For longer stroke applications CLL-Series Lock-Nut Cylinders are the perfect choice.
- Fuel Capacity: Ensure the Hydraulic Cylinder's fuel capacity meets your requirements. Calculate fuel capacity using the formula: Fuel capacity (cm³) = Active area of the cylinder (cm²) × Stroke of the cylinder (cm).
- Jacking Points: Ensure the number of jacking points matches the lifting requirements.
- Height and Stroke: Determine the height and stroke of the cylinder based on the working situation. Choose the correct height and stroke accordingly.
- Cylinder Force: Calculate the required cylinder force using the formula: Cylinder force (kg) = Active area of the cylinder (cm²) × hydraulic pump pressure (bar).
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement

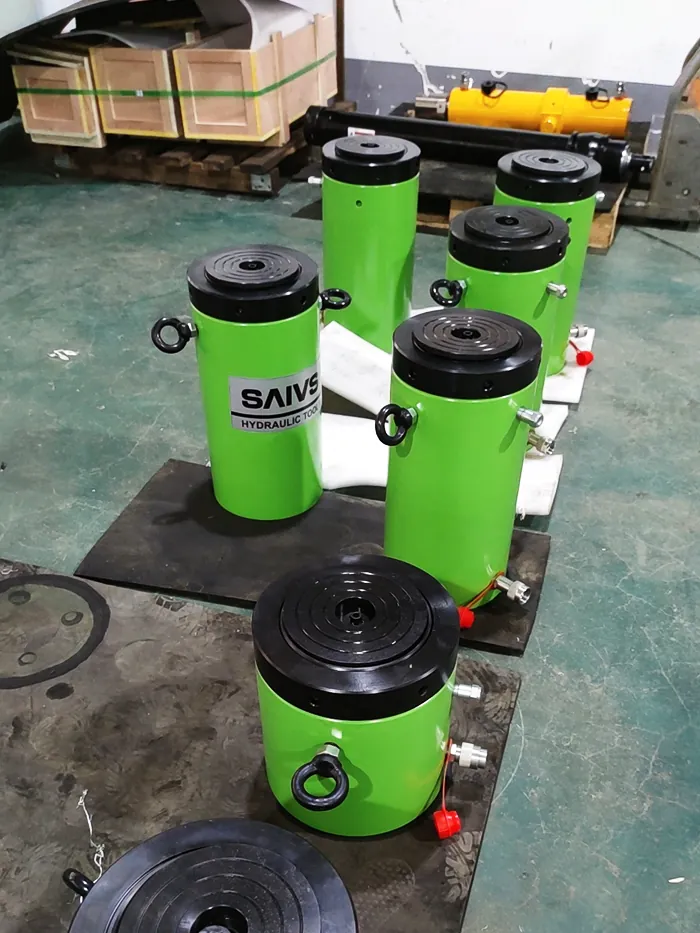

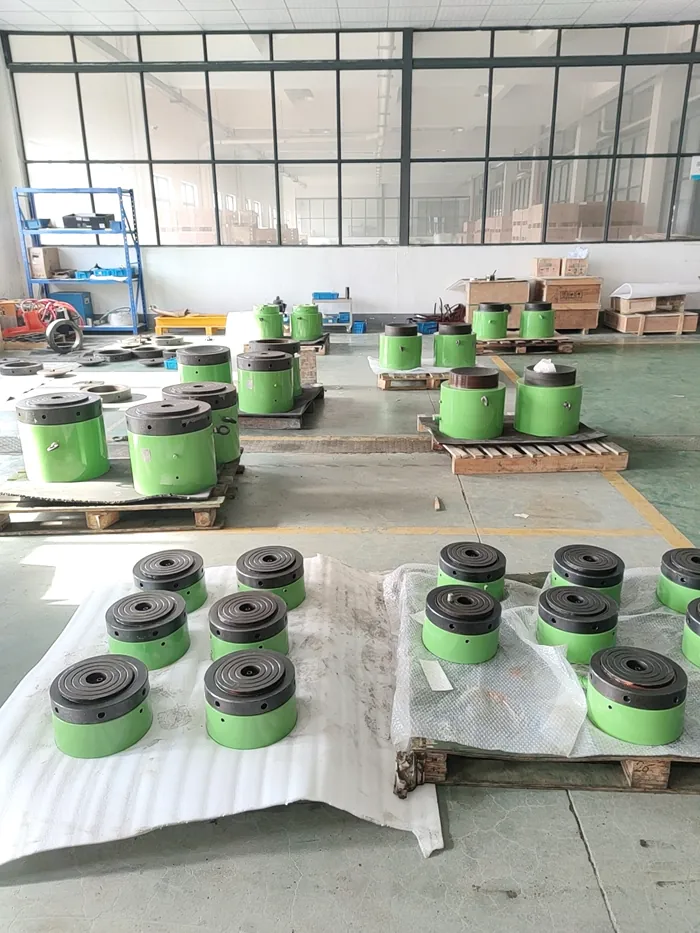

Image Gallery
Dimensions
| Collapsed Height | A | (mm) | 148 | |
| Extended Height | B | (mm) | 193 | |
| Outside Dia. | C | (mm) | 224 | |
| Cylinder Bore Dia | D | (mm) | 172 | |
| Plunger Dia. | E | (mm) | Tr171x6 | |
| Base to Advance Port | F | (mm) | 27 | |
| Saddle Dia. | H | (mm) | 160 | |
| Saddle Protr. from Plgr. | R | 4° | ||
| Lock-nut Height | S | (mm) | 40 | |
Series Comparison
| Cylinder Capacity | Stroke | Model Number | Cylinder Effective Area | Oil Capacity | Collapsed Height | Extended Height | Outside Dia. | Cylinder Bore Dia | Plunger Dia. | Base to Advance Port | Saddle Dia. | Saddle Protr. from Plgr. | Lock-nut Height | Weight |
| A | B | C | D | E | F | H | R | S | ||||||
| ton(KN) | (mm) | (cm2) | (cm3) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 60(606) | 50 | CLP-602 | 88.2 | 432 | 125 | 175 | 140 | 106 | Tr104x4 | 19 | 96 | 4° | 28 | 15 |
| 100(1027) | 50 | CLP-1002 | 147.3 | 734 | 140 | 187 | 180 | 137 | Tr136x6 | 21 | 126 | 4° | 31 | 27 |
| 160(1619) | 45 | CLP-1602 | 232.2 | 1040 | 148 | 193 | 224 | 172 | Tr171x6 | 27 | 160 | 4° | 40 | 45.5 |
| 200(1999) | 45 | CLP-2002 | 285.6 | 1285 | 155 | 200 | 245 | 190.7 | Tr190x6 | 30 | 180 | 4° | 43 | 57 |
| 260(2567) | 45 | CLP-2502 | 366.2 | 1650 | 159 | 204 | 275 | 216 | Tr215x6 | 32 | 200 | 4° | 44 | 74 |
| 400(3916) | 45 | CLP-4002 | 572.3 | 2517 | 178 | 223 | 350 | 270 | Tr266x6 | 41 | 251 | 4° | 55 | 134 |
| 520(5114) | 45 | CLP-5002 | 730.2 | 3287 | 192 | 237 | 400 | 305 | Tr304x6 | 48 | 289 | 3° | 62 | 188 |
