BRC25, 2.5 Ton Capacity, 127mm Stroke, Pull Hydraulic Cylinder
-
Model:BRC25
Capacity:2.5 ton/24.5 KN
Stroke:127 mm/5 in
Weight:1.8 kg/3.9 lbs
Oil Capacity:45 cm³/2.8 in³
Max.pressure:700 Bar/10000 Psi
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's BRC25
- BRP106C, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRP606, 60 Ton Capacity, 152mm Stroke, Pull Hydraulic CylinderBRP306, 30 Ton Capacity, 155mm Stroke, Pull Hydraulic CylinderBRP106L, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC106, 10 Ton Capacity, 151mm Stroke, Pull Hydraulic CylinderBRC46, 5 Ton Capacity, 140mm Stroke, Pull Hydraulic CylinderBRC25, 2.5 Ton Capacity, 127mm Stroke, Pull Hydraulic CylinderBRP 10/30/50 ton 151/152/155 mm Pull Hydraulic CylinderBRC 2.5/5/10 Ton 127/140/151 mm Pull Hydraulic Cylinder
Description
- Model:BRC25
- Product Line: Industrial Tools
- Type: Hydraulic Cylinder Ram, Hydraulic Jacks
- High Strength alloy steel construction
- Plunger blow-out protection to prevent rod over-extension
- Hard chrome-plated plunger for long life
- Replaceable links on BRP-models
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination,extending cylinder life
- Single-Acting, spring return
Ship building,welding and Enerpac pull cylinders go hand in hand.
To lift a load-bearing mast into place, BRP Pull Hydraulic Cylinders were used to tension the supporting cables.
- Material:CR40
- Manufacturer:SAIVS
- Country of Origin:China
- Minimum Order:1 Piece
- Customizable with special requirement
Image Gallery

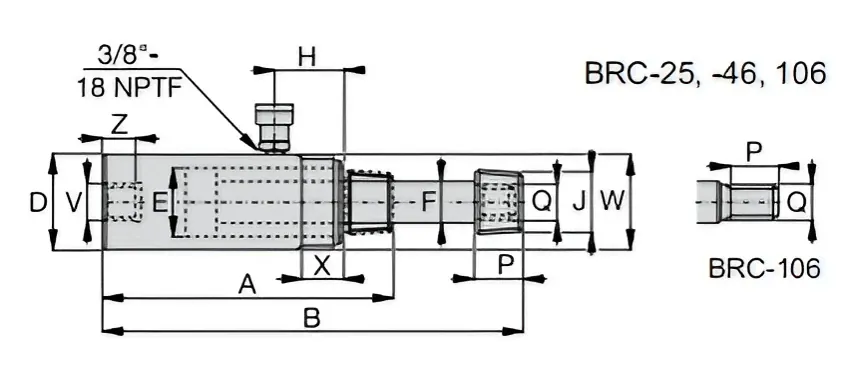

Dimensions
| Collapsed Height/mm(A) | 264 |
| Extended Height/mm(B) | 391 |
| Outside Dia/mm(D) | 48 |
| Cylinder Bore Dia/mm(E) | 28.4 |
| Plunger Dia/mm(F) | 19 |
| Top To Inlet Port/mm(H) | 45 |
| Dimension(J) | 3/4”-14 |
| Dimension L | * |
| Dimension M | * |
| Dimension N | * |
| Dimension P | 28 |
| Dimension Q | 1 1/16”-24 |
| Dimension T | * |
| Base Mounting Holes Thread(V) | 3/4”-14NPT |
| Collar Thread(V) | 1 1/2”-16UN |
| Collar Thread Length/mm(X) | 24 |
| Base Mounting Holes Thread Length/mm(Z) | 17 |

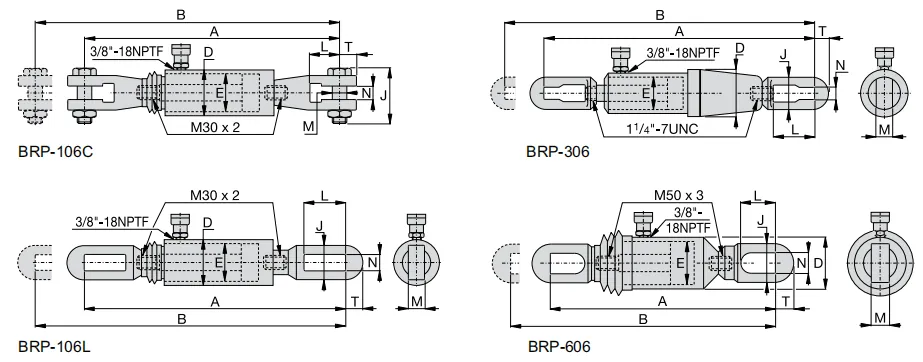

Series Comparison
| Model Number | Capacity/Ton | Stroke/mm | Cylinder Effective Area/cm2 | Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Top To Inlet Port/mm(H) | Dimension(J) | Dimension L | Dimension M | Dimension N | Dimension P | Dimension Q | Dimension T | Base Mounting Holes Thread(V) | Collar Thread(V) | Collar Thread Length/mm(X) | Base Mounting Holes Thread Length/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BRC-25 | 2.5 | 127 | 3.5 | 45 | 264 | 391 | 48 | 28.4 | 19 | 45 | 3/4”-14 | * | * | * | 28 | 1 1/16”-24 | * | 3/4”-14NPT | 1 1/2”-16UN | 24 | 17 | 1.8 |
| BRC-46 | 5 | 140 | 7.3 | 101 | 301 | 441 | 57 | 42.9 | 30.2 | 42 | 1 1/4”-11 1/2” | * | * | * | 32 | 1 3/16”-16 | * | 1 1/4”-11 1/2NPT | 2 1/4”-14UN | 26 | 24 | 4.5 |
| BRC-106 | 10 | 151 | 15 | 228 | 289 | 440 | 85 | 54.1 | 31.8 | 39 | * | * | * | * | 25 | M30X2 | * | M30X2 | M85X2 | 25 | 24 | 9.5 |
| BRP-106C | 10 | 151 | 15 | 227 | 587 | 738 | 85 | 54.1 | * | * | 119 | 62 | 30 | 35 | * | * | 32 | * | * | * | * | 15.9 |
| BRP-106L | 10 | 151 | 15 | 227 | 541 | 692 | 85 | 54.1 | * | * | 67 | 115 | 22 | 30 | * | * | 32 | * | * | * | * | 13.2 |
| BRP-306 | 30 | 155 | 46.6 | 722 | 1085 | 1240 | 136 | 88.9 | * | * | 114 | 145 | 35 | 39 | * | * | 50 | * | * | * | * | 48.1 |
| BRP-606 | 50 | 152 | 72.1 | 1096 | 719 | 871 | 140 | 110 | * | * | 130 | 149 | 39 | 50 | * | * | 70 | * | * | * | * | 53.5 |
