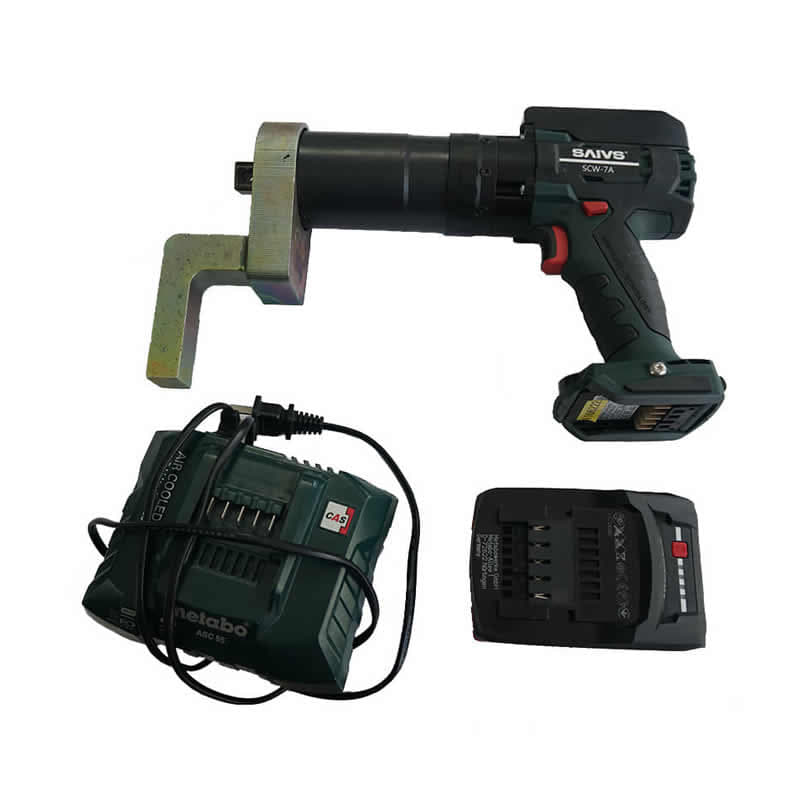

Battery Powered Brushless Torque Wrench SCW-A Series-1-SAIVS

Battery Powered Brushless Torque Wrench SCW-A Series-2-SAIVS

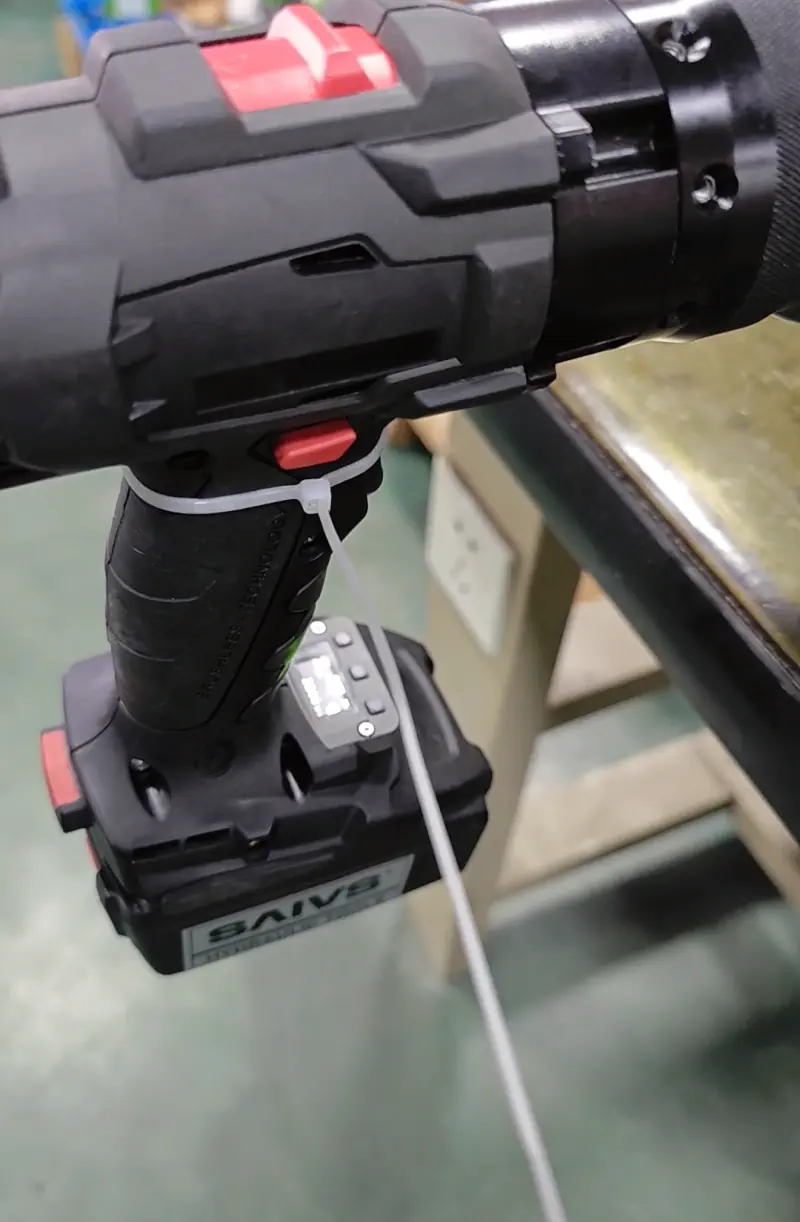

Battery Powered Brushless Torque Wrench SCW-A Series-3-SAIVS

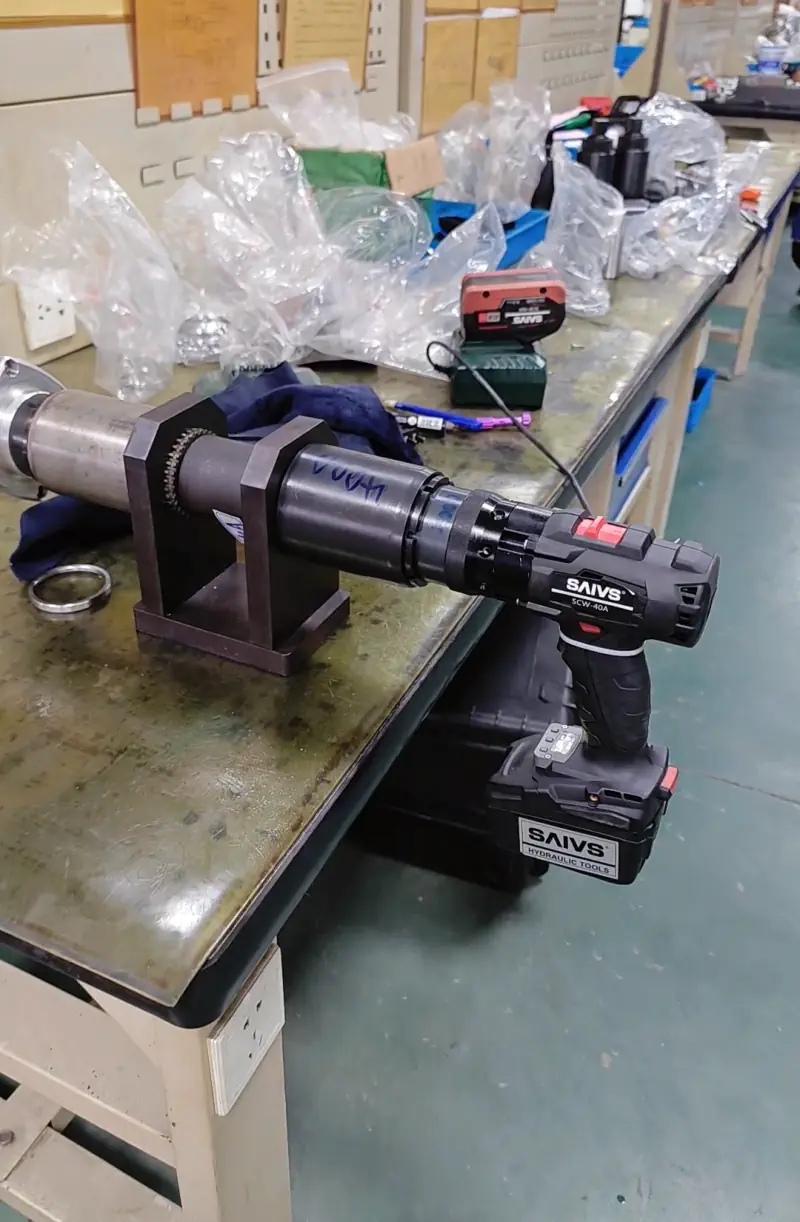

Battery Powered Brushless Torque Wrench SCW-A Series-4-SAIVS

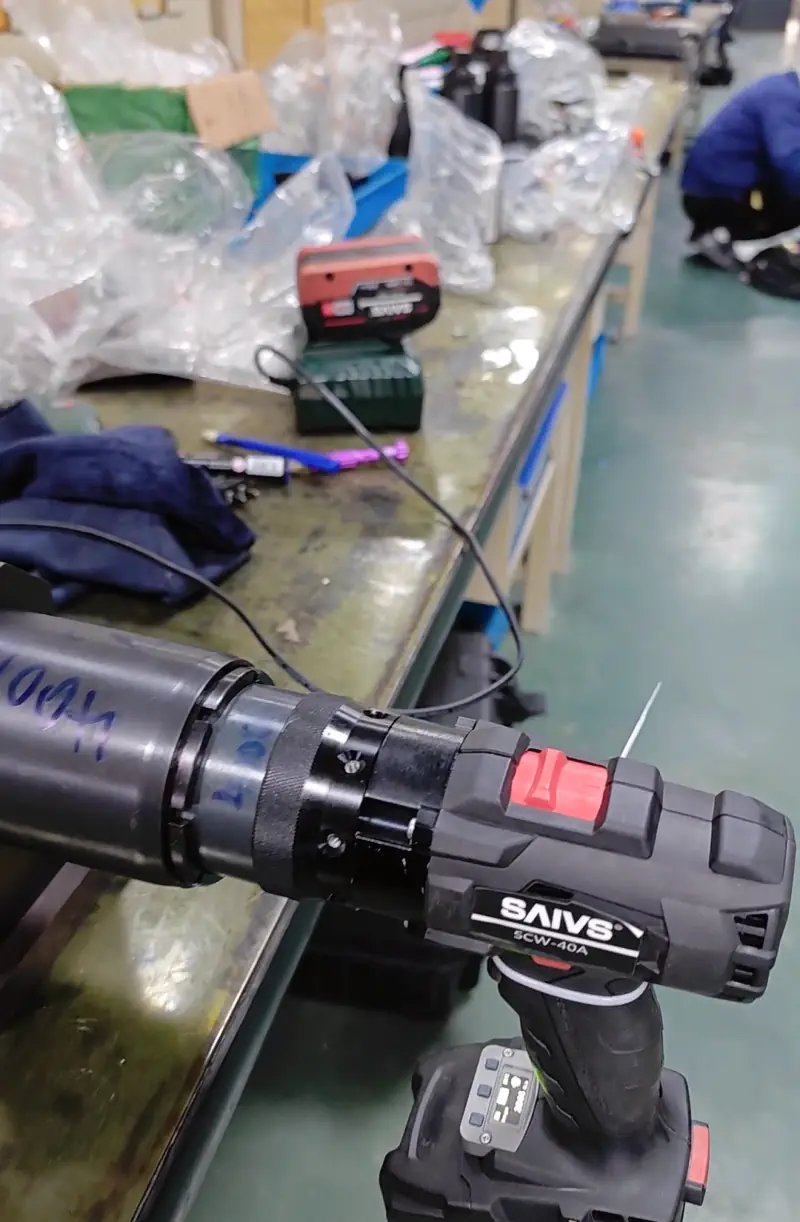

Battery Powered Brushless Torque Wrench SCW-A Series

5out of5 based on14 reviews | Write a review

Grade: Industrial
Customized support: OEM, ODM, OBM
Model Number: SCW-A
Type: Torque Wrench
Rated Voltage: 18V
Max. Torque: 8000Nm No-Load Speed: 13000rpm
Weight: 4-9.9 kg
Power Source: Battery
Motor Type: Brushless Motor
Minimum Torque: 200Nm - 8000Nm
RPM: 6.5-1.1 Square Drive Size: 3/4" / 1"/
Rechargeable brushless torque wrench SCW-R series

PDF DOWNLOAD

Description

Product Line: Industrial Tools

Customizable with special requirement

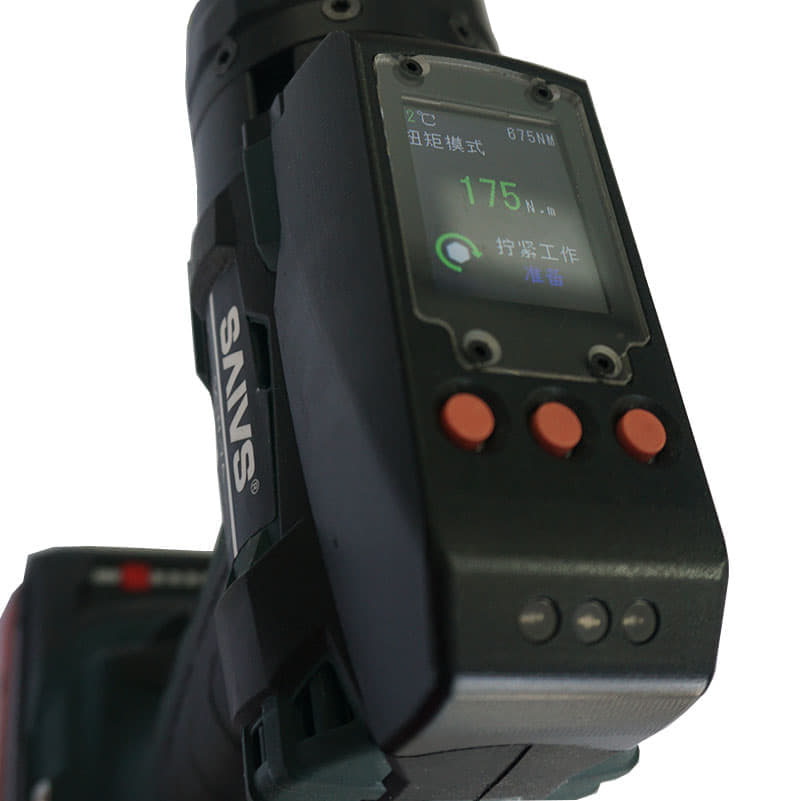

1.0.96 inch IPS LCD display.

2.The use of brushless motor eliminates the need to replace carbon brushes.

3.Digitally adjust and display the working parameters of torque and wrench.

4.Any value of torque can be set within the torque range, and 1nm adjustment is supported.

5.Multi mode regulation, digital torque regulation or 1 to 99 gear torque regulation.

6.Programmable preset 10 common output torques or gears.

7.The use of multi polar planetary gearbox has high reliability and stability.

8.Standard counteractive arm, optional custom counteractive arm.

9.Support for installation of lifting system, safer operation at high altitude.

10.Support native log, support USB read log *P.

11.Anti-counteractive arm locks for unloading.

12.Multi-pole gearbox for high reliability and high stability. Temperature monitoring function for wrench overheating

Battery monitoring, compensation

Torque overload limit function

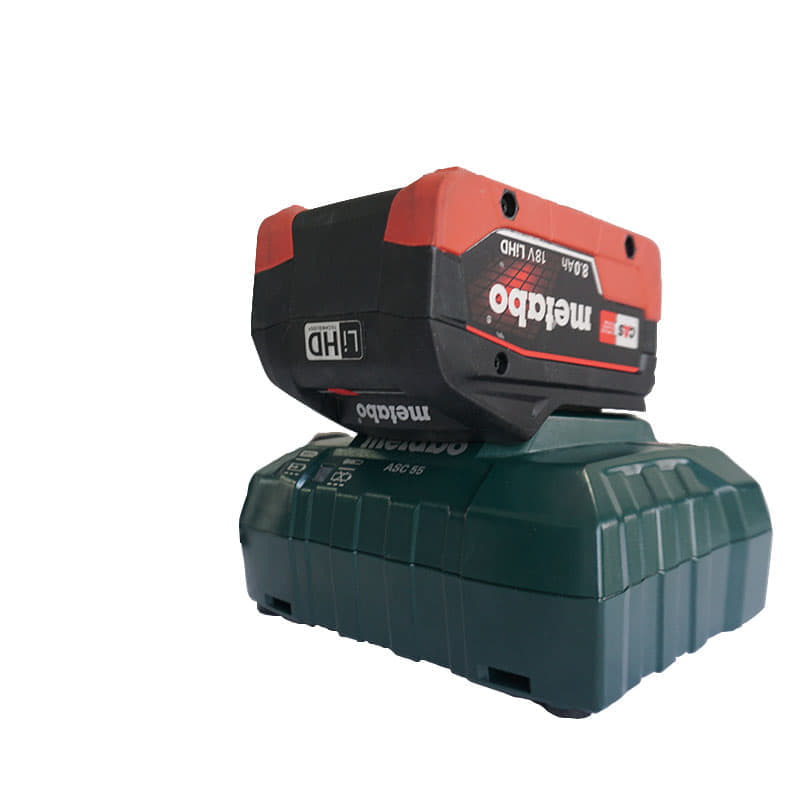

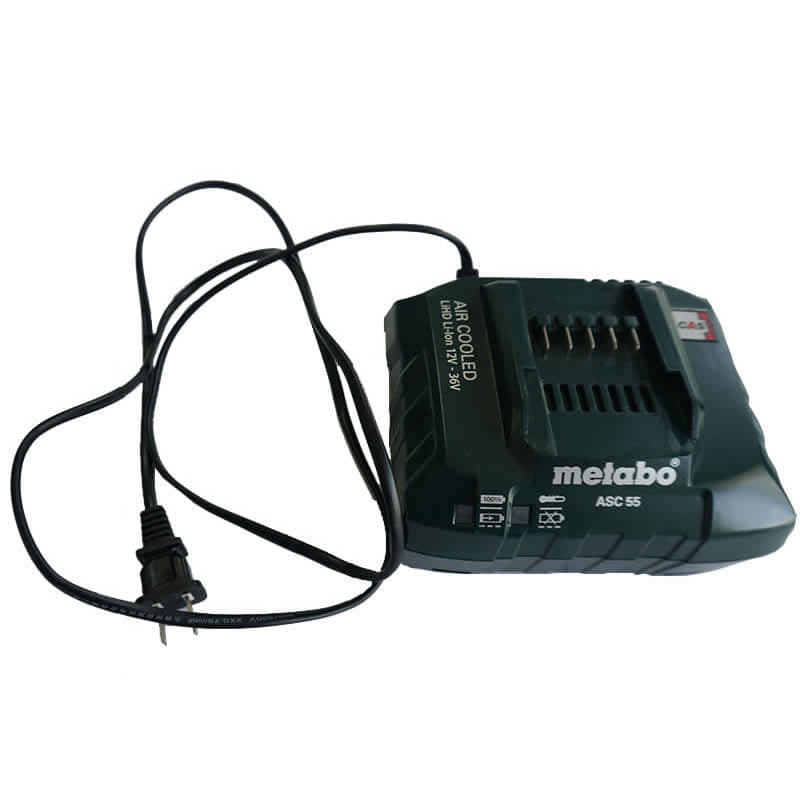

High capacity air-cooled battery, fast charge charger

precision ±4%

User (operator, administrator) hierarchical function management

Buzzer tips for factory environments

Background torque calibration function software compensation function

Here are ten application scenarios for the Battery powered brushless torque wrench:

1.Automotive repair and maintenance

2.Aerospace maintenance and assembly

3.Heavy equipment and machinery maintenance

4.Wind turbine assembly and repair

5.Railway maintenance and repair

6.Construction and structural assembly

7.Plumbing and pipe fitting

8.Electrical equipment installation and maintenance

9.Mining equipment maintenance and repair

10.Oil and gas pipeline maintenance

These applications all require precise and reliable torque control, and sometimes require movement or no access to power. In such cases, using a battery powered brushless Torque Wrench can provide a convenient, efficient and accurate solution.

Dimensions

Model	Drive Square	Torque	Speed	Weight	Dimensions (mm)				Noise
		(Nm)	(Rpm)	(Kg)	A	B	C	D	(db)
SCW-7A	0.75”	200-700	6.5	4	279	69	69	198	80
SCW-14A	0.75”/ 1”	338-1350	5.7	4	284	69	69	198	80
SCW-20A	1”	525-2000	3	4.9	292	76	76	201	80
SCW-30A	1”	700-3000	2.6	5.3	304	78	78	202	80
SCW-40A	1” / 1.5”	1000-4000	2.2	5.9	306	82	82	205	80
SCW-60A	1.5”	1500-6000	1.5	8.6	343	93	93	209	80
SCW-80A	1.5”	2000-8000	1.1	9.9	353	102	102	214	80

FAQs

What are the applications of a battery-powered brushless torque wrench?

A battery-powered brushless torque wrench can be used in a variety of applications, including automotive repair, maintenance and assembly work, construction projects, and industrial manufacturing.

How accurate is a battery-powered brushless torque wrench?

The accuracy of a battery-powered brushless torque wrench depends on the quality of the tool and how it is calibrated. Many models have built-in features to ensure precise torque measurements, and some even offer digital displays or alerts to indicate when the desired torque setting has been reached.

Can a battery-powered brushless torque wrench replace traditional hand tools?

While a battery-powered brushless torque wrench can provide convenience and efficiency, it is not necessarily intended to replace traditional hand tools entirely. Many professionals still prefer to use manual wrenches for certain applications or in situations where precision is critical.

How long does the battery last on a battery-powered brushless torque wrench?

The battery life of a battery-powered brushless torque wrench varies depending on the model and usage. Some models may last for several hours of continuous use, while others may need to be recharged more frequently. It's important to follow the manufacturer's recommendations for charging and battery care to maximize the life of the battery.

What safety precautions should be taken when using a battery-powered brushless torque wrench?

When using a battery-powered brushless torque wrench, it's important to read and follow all safety instructions provided by the manufacturer, including wearing the appropriate protective gear, ensuring that the tool is properly secured and stable, and avoiding over-tightening or using excessive force that could cause damage or injury. Additionally, you should always inspect the tool and its components before each use to ensure proper function and avoid potential hazards.
