AMP Series,100-600 Ton,Hydraulic Heavy Duty Puller
-
Model:AMP
Capacity: 100-600 Ton
Stroke: 200-350 mm
Reach: 375-1000 mm
Spread: 200-500 mm
Maximum Operating Pressure: 700 bar/10000 PSI
Weight: 720-2500 kg
Manufacturer: SAIVS
Country of Origin: China
Minimum Order: 1 Piece
Brand Name:Replacement Enerpac's AMP
Description
Model:AMP
Product Line: Industrial Tools
Customizable with special requirement

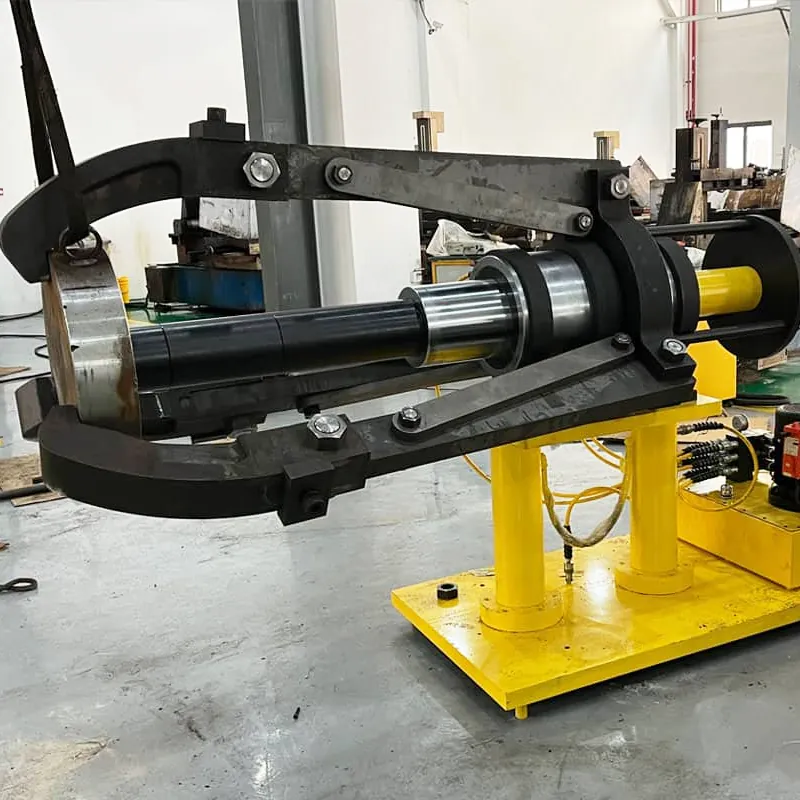

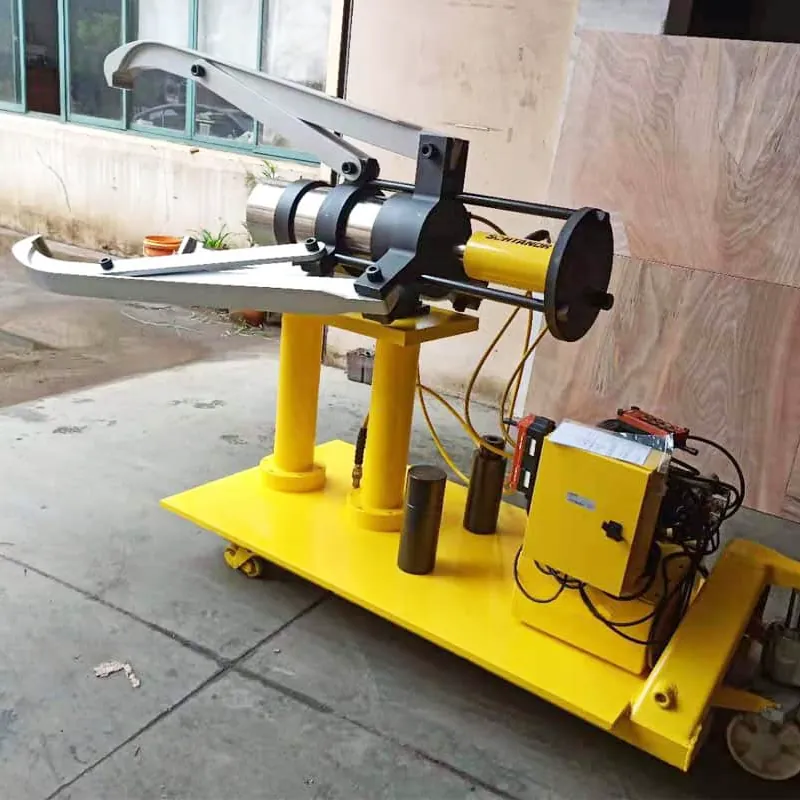

The hydraulic trolley-mounted pullers are hydraulically operated to achieve the vertical height adjustment of the puller, the extension of the jaws, and the pull-out of the workpiece.
The puller is self-centering, the arm slides inward or outward simultaneously, easy to maneuver and adjust in height.
The jaw is made of forged high-strength steel alloy. The tighter the force, the harder the jaw grip.
The integral safety release valve prevents overloading and ensures that you will never exceed the max working capacity.
One person can do the job efficiently and save time.
High-quality 360-degree rotation wheels for easy transportation
Image Gallery
Series Comparison
| Model | Capacity(Ton) | Min. Spread(mm) | Max. Spread(mm) | Max. Reach(mm) | Min. Reach(mm) | Stroke(mm) | Weight(Kg) |
| AMP100 | 100 Ton | 981 KN | 200 | 1000 | 450 | 375 | 200 mm | 7.87 inches | 720 | 1587.6 lbs |
| AMP200 | 200 Ton | 1961 KN | 300 | 1500 | 680 | 550 | 250 mm | 9.84 inches | 1300 | 2866.0 lbs |
| AMP300 | 300 Ton | 2942 KN | 400 | 1800 | 980 | 750 | 300 mm | 11.81 inches | 1820 | 4012.4 lbs |
| AMP500 | 500 Ton | 4903 KN | 500 | 2000 | 1050 | 920 | 350 mm | 13.78 inches | 2100 | 4629.7 lbs |
| AMP600 | 600 Ton | 5884 KN | 500 | 2000 | 1250 | 1000 | 350 mm | 13.78 inches | 2500 | 5511.6 lbs |
Certificate of Compliance
Literature
