RAR Series Double-Acting,Aluminum Hydraulic Cylinders
-
Model:RAR
RAR Series Double-Acting,Aluminum Hydraulic Cylinders
Capacity:20/30/50/100/150 ton
Stroke:50/100/150/200/250 mm
Maximum Operating Pressure:700 Bar/10000 Psi/70 Mpa
Weight:7.4-42.6 kg/16.31-93.93 lbs
Model Number:RAR202-RAR15010
Push Oil Capacity:156-5675 cm³
Manufacturer:SAIVS
Country of Origin:China
Return Type:Single-Acting Spring Return
Plunger Type:Solid
Brand Name:Replacement Enerpac's RAR
Description
Model:RAR
Product Line: Industrial Tools
Type: Hydraulic Cylinder Ram, Hydraulic Jacks
Customizable with special requirement
Our cylinders are designed with a focus on efficiency, durability, and safety. Each component is carefully crafted to ensure optimal Performance, making them ideal for a variety of applications.
Key Features
Double-Acting Mechanism: Enables rapid retraction regardless of hose lengths or system losses, ensuring swift and efficient operation.
Composite Bearings: Enhance cylinder life and sideload resistance, providing smooth and reliable performance over time.
Hard-Coat Finish: Applied to all surfaces, this finish resists damage, extending the lifespan of the cylinder even in demanding environments.
Handles Included: All models come with handles for ease of handling and maneuverability, enhancing user convenience and safety.
Steel Base Plate and Saddle: Provides robust protection against load-induced damage, ensuring the structural integrity of the cylinder under heavy loads.
Integral Stop Ring: Prevents plunger over-travel, enhancing operational safety, and is capable of withstanding the full cylinder capacity for added security.
Built-In Safety Valve: Prevents accidental over-pressurization, prioritizing user safety and protecting the cylinder from potential damage.
Dimensions
| Steel Base Plate Mounting Holes | |||
| Cylinder Model/Capacity ton | Bolt Circle U (mm) | Thread V (mm) | Thread Depth Z (mm) |
| RAR-20 | 93 | M6 | 12 |
| RAR-30 | 105 | M6 | 12 |
| RAR-50 | 110 | M6 | 12 |
| RAR-100 | 165 | M6 | 12 |
| RAR-150 | 200 | M6 | 12 |
*Including Base Plate Height of 6 mm
*All RAR-cylinders are equipped with bolt-on removable hardened steel saddles.
| Optional Bolt-on Tilt Saddle Dimensions(mm) | |||
| For Cylinder Model/Capacity ton | Tilt Saddle Model Number | TiltSaddle Diameter J1 | Saddle Protrusion from Plunger K1 |
| RAR-50 | CATG-50 | 50 | 24 |
| RAR-100 | CATG-150 | 73 | 29 |
| RAR-150 | CATG-200 | 91 | 31 |

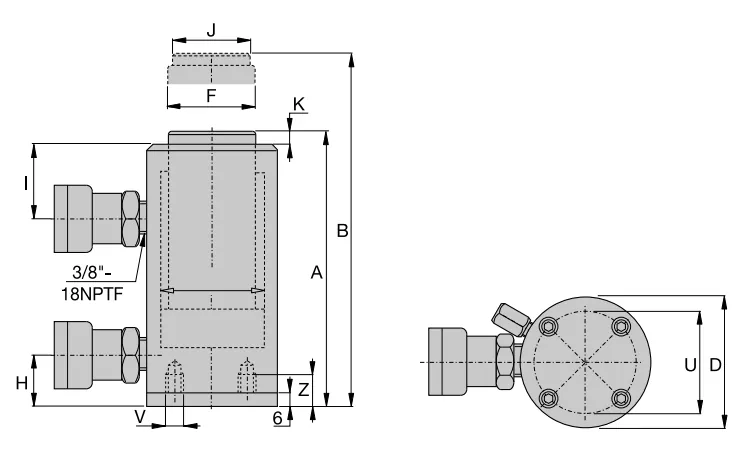

| Model Number | Capacity/Ton | Stroke/mm | Advance Cylinder Effective Area/cm2 | Retract Cylinder Effective Area/cm2 | Push Oil Capacity/cm3 | Pull Oil Capacity/cm3 | Collapsed Height/mm(A) | Extended Height/mm(B) | Outside Dia/mm(D) | Cylinder Bore Dia/mm(E) | Plunger Dia/mm(F) | Base To Advance Port/mm(H) | Saddle Dia/mm(I) | Saddle Protri. From Plgr./mm(J) | Dimension K | Base Mounting Holes Bolt Circle/mm(U) | Base Mounting Holes Thread(V) | Base Mounting Holes Thread Depth/mm(Z) | Weight/Kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RAR-202 | 20 | 50 | 31.2 | 18.6 | 156 | 93 | 189 | 239 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 7.4 |
| RAR-204 | 20 | 100 | 31.2 | 18.6 | 312 | 186 | 239 | 339 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8 |
| RAR-206 | 20 | 150 | 31.2 | 18.6 | 468 | 279 | 289 | 439 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 8.6 |
| RAR-208 | 20 | 200 | 31.2 | 18.6 | 624 | 372 | 339 | 539 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.2 |
| RAR-2010 | 20 | 250 | 31.2 | 18.6 | 780 | 465 | 389 | 639 | 113 | 63 | 40 | 30 | 50 | 30 | 3 | 93 | M6 | 12 | 9.8 |
| RAR-302 | 30 | 50 | 44.2 | 24.5 | 221 | 123 | 201 | 251 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 8.6 |
| RAR-304 | 30 | 100 | 44.2 | 24.5 | 442 | 245 | 251 | 351 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 9.5 |
| RAR-306 | 30 | 150 | 44.2 | 24.5 | 663 | 368 | 301 | 451 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 10.4 |
| RAR-308 | 30 | 200 | 44.2 | 24.5 | 884 | 490 | 351 | 551 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 11.3 |
| RAR-3010 | 30 | 250 | 44.2 | 24.5 | 1105 | 613 | 401 | 651 | 125 | 75 | 50 | 30 | 55 | 40 | 3 | 105 | M6 | 12 | 12.2 |
| RAR-502 | 50 | 50 | 70.9 | 26.7 | 354 | 134 | 201 | 251 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 11.1 |
| RAR-504 | 50 | 100 | 70.9 | 26.7 | 709 | 267 | 251 | 351 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 12.7 |
| RAR-506 | 50 | 150 | 70.9 | 26.7 | 1063 | 401 | 301 | 451 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 14.3 |
| RAR-508 | 50 | 200 | 70.9 | 26.7 | 1417 | 534 | 351 | 551 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 15.9 |
| RAR-5010 | 50 | 250 | 70.9 | 26.7 | 1771 | 668 | 401 | 651 | 145 | 95 | 75 | 30 | 56 | 50 | 3 | 110 | M6 | 12 | 17.5 |
| RAR-1002 | 100 | 50 | 143.1 | 79.5 | 715 | 398 | 251 | 301 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 16.4 |
| RAR-1004 | 100 | 100 | 143.1 | 79.5 | 1431 | 795 | 301 | 401 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 19.3 |
| RAR-1006 | 100 | 150 | 143.1 | 79.5 | 2147 | 1193 | 351 | 501 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 22.2 |
| RAR-1008 | 100 | 200 | 143.1 | 79.5 | 2863 | 1590 | 401 | 601 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 25.1 |
| RAR-10010 | 100 | 250 | 143.1 | 79.5 | 3578 | 1988 | 451 | 701 | 185 | 135 | 90 | 43 | 80 | 75 | 3 | 165 | M6 | 12 | 28 |
| RAR-1502 | 150 | 50 | 227 | 132 | 1135 | 660 | 248 | 298 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 24.2 |
| RAR-1504 | 150 | 100 | 227 | 132 | 2270 | 1320 | 298 | 398 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 28.9 |
| RAR-1506 | 150 | 150 | 227 | 132 | 3405 | 1980 | 348 | 498 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 33.2 |
| RAR-1508 | 150 | 200 | 227 | 132 | 4540 | 2640 | 398 | 598 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 37.9 |
| RAR-15010 | 150 | 250 | 227 | 132 | 5675 | 3300 | 448 | 698 | 230 | 170 | 110 | 38 | 75 | 113 | 3 | 200 | M6 | 12 | 42.6 |
