47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8-1-SAIVS

47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8-2-SAIVS

47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8-3-SAIVS

47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8-4-SAIVS

47245Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW8

5out of5 based on10 reviews | Write a review

Torque Wrench Model Number:SDW8
Torque Range(Nm):4725-47245
Torque Range(Ft.lbs):3485-34848
Square Drive Size(inch):2 1/2”
Hexagon Nut Across Flats(mm):85-165
Weight(Kg) / (lbs):53.6kg /118.17 lbs
Maximum Operating Pressure (bar)/(psi):700bar / 10000psi
The low-profile cassettes of our Hydraulic Torque Wrench are designed in a compact and ultra-slim structure, making them perfect for fitting into tight spaces. They offer maximum flexibility with a full range of interchangeable hexagon cassettes and reducing inserts, eliminating the need for additional tools.
33578Nm 2-1/2" Square Drive Hydraulic Torque Wrench,SDW7 25041Nm 2-1/2”Square Drive Hydraulic Torque Wrench,SDW6 14787Nm 1-1/2”High Strength Square Drive Hydraulic Torque Wrench,SDW5 10364Nm 1-1/2”Square Drive Hydraulic Torque Wrench,Reaction Arm,SDW4 7244Nm 1-1/2”Square Drive Hydraulic Torque Wrench,SDW3 4280Nm 1”Square Drive Socket Hydraulic Torque Wrench Lightweight,SDW2 180-1803Nm 3/4”Hydraulic Torque Wrench,SDW1 Square Drive Hydraulic Torque Wrench SDW Series

VIEW CATALOGUE

Description

Product Line: Industrial Tools

Customizable with special requirement

SAIVS's SDW series Square Drive Hydraulic Torque Wrench are almost the same as Enerpac’s S & RSL series,

HYTORC’s MXT series, TORCUP’s TU series and SU series, HI FORCE’s TWS-N series, SPX's TWSD SERIES other wrenches in terms of function, quality, and applicable working conditions.

SAIVS offers a one-year warranty, better prices, and customized services for special conditions.

Welcome to Get Latest Price now

SDW8 2-1/2" inch 47245Nm Square Drive Hydraulic Torque Wrench for AF 85-165mm Hexagon Nut

The rigid steel design ensures the durability, reliability, and safety of our tools. With a compact nose radius, our wrench can effortlessly perform in even the tightest of spaces. The constant torque output provides accuracy up to ±3%, ensuring precise and reliable Bolt Tightening.

Featuring a multi-direction high-flow swivel manifold (360°X-axis * 180°Y-axis), our Hydraulic Torque Wrench offers enhanced maneuverability and versatility.

Our wrenches are designed for fast operation cycles, featuring a fine-tooth ratchet, corrosion resistance, low weight, and high-strength design. Additionally, they can be used with air and Electric Torque Wrench pumps, making them suitable for various applications.

For those in heavy chemical industries, our high-power hydraulic torque wrenches are indispensable tools for equipment repair and installation. They are capable of outputting and setting torque with high precision, ensuring efficient and reliable bolt fastening.

Hydraulic Torque Wrench Model Number	SDW8
Hydraulic Torque Wrench Torque Range(Nm)	4725-47245
Hydraulic Torque Wrench Torque Range(Ft.lbs)	3485-34848
Square Drive Size(inch)	2 1/2”
Hexagon Nut Across Flats(mm)	85-165
Weight(Kg) / (lbs)	53.6kg /118.17 lbs
Maximum Operating Pressure (bar)/(psi)	700bar / 10000psi

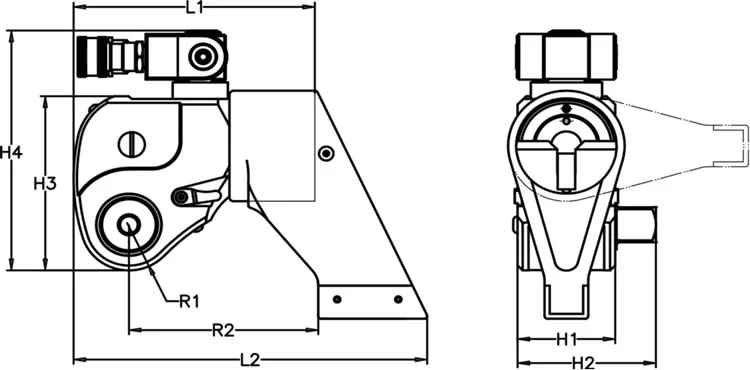

Dimensions

Dimension L1	358
Dimension L2	517
Dimension H1	153
Dimension H2	215
Dimension H3	287
Dimension H4	332
Dimension R1	76
Dimension R2	270

Torque Wrench Model Number	Torque Range		Square Drive Size	Hexagon Nut Across Flats	Weight	Dimensions
	Torque Range		Square Drive Size	Hexagon Nut Across Flats	Weight	L1	L2	H1	H2	H3	H4	R1	R2
	Nm	Ft.lbs	inch	mm	kg	mm
SDW1	180-1803	133-1330	3/4"	24 - 55	2.5	130	184	51	72	97	145	25	97
SDW2	428-4280	316-3157	1"	34 - 75	4.8	168	243	67	95	126	174	33	130
SDW3	724-7244	534-5343	11/2"	41 - 85	8.7	200	287	78	122	152	199	39	155
SDW4	1036-10364	764-7644	11/2"	46 - 95	11.4	213	308	90	133	169	216	46	170
SDW5	1479-14787	1091-10907	11/2"	55 - 105	15.4	244	352	100	142	189	236	50	193
SDW6	2504-25041	1847-18470	21/2"	65 - 130	26.8	284	413	120	183	223	270	59	224
SDW7	3358-33578	2477-24767	21/2"	75 - 145	37	314	457	135	200	250	296	66	250
SDW8	4725-47245	3485-34848	21/2"	85 - 165	53.6	358	517	153	215	287	332	76	270

Impact Socket Specification

3/4" Suqare Drive (SDW1)							1" Suqare Drive (SDW2)
Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2	Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2
Socket Model	Bolt Type	mm	mm				Socket Model	Bolt Type	mm	mm
SD01001	M16	24	54	32	40	40	SD02001	M20	30	59	32	54	54
SD01002	M18	27	54	32	42	42	SD02002	M22	34	59	32	58	58
SD01003	M20	30	54	33	46	44	SD02003	M24	36	62	32	59	59
SD01004	M22	34	54	32	48	44	SD02004	M27	41	65	38	67	54
SD01005	M24	36	57	32	53	44	SD02005	M30	46	65	38	74	54
SD01006	M27	41	58	33	60	44	SD02006	M33	50	70	43	79	60
SD01007	M30	46	63	38	66	44	SD02007	M36	55	80	52	84	60
SD01008	M33	50	65	40	71	44	SD02008	M39	60	85	57	89	60
SD01009	M36	55	70	45	77	54	SD02009	M42	65	85	58	98	70
							SD02010	M45	70	90	62	104	70
							SD02011	M48	75	95	65	108	70

11/2" Suqare Drive (SDW3, SDW4, SDW5)							21/2"Suqare Drive (SDW6, SDW7, SDW8)
Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2	Socket Model	Bolt Type	Hexagon(AF)	L1	L2	D1	D2
Socket Model	Bolt Type	mm	mm				Socket Model	Bolt Type	mm	mm
SD03002	M27	41	85	44	74	74	SD04003	M42	65	100	52	119	119
SD03003	M30	46	85	44	74	74	SD04004	M45	70	120	67	128	128
SD03004	M33	50	90	45	79	79	SD04005	M48	75	120	67	128	128
SD03005	M36	55	90	45	84	84	SD04006	M52	80	130	71	128	128
SD03006	M39	60	100	45	94	94	SD04007	M56	85	130	71	129	129
SD03007	M42	65	100	45	98	80	SD04008	M60	90	140	73	139	139
SD03008	M45	70	105	50	104	80	SD04009	M64	95	140	73	139	139
SD03009	M48	75	110	50	118	85	SD04010	M68	100	140	81	148	130
SD03010	M52	80	115	55	118	90	SD04011	M72	105	150	89	149	130
SD03011	M56	85	125	60	128	90	SD04012	M76	110	150	90	158	130
SD03012	M60	90	125	60	139	90	SD04013	M80	115	150	98	168	130
SD03013	M64	95	130	65	139	90	SD04014	M85	120	150	98	178	130
SD03014	M68	100	135	70	144	90	SD04015	M90	130	170	98	188	130
SD03015	M72	105	135	70	149	90	SD04016	M95	135	170	114	198	130
SD03016	M76	110	135	70	158	90	SD04017	M100	145	170	122	210	152
SD03017	M80	115	135	70	159	90	SD04018	M105	150	190	140	216	152
SD03018	M85	120	135	70	168	95	SD04019	M110	155	190	140	229	152
SD03019	M90	130	155	93	189	95	SD04020	M115	165	190	140	241	152
