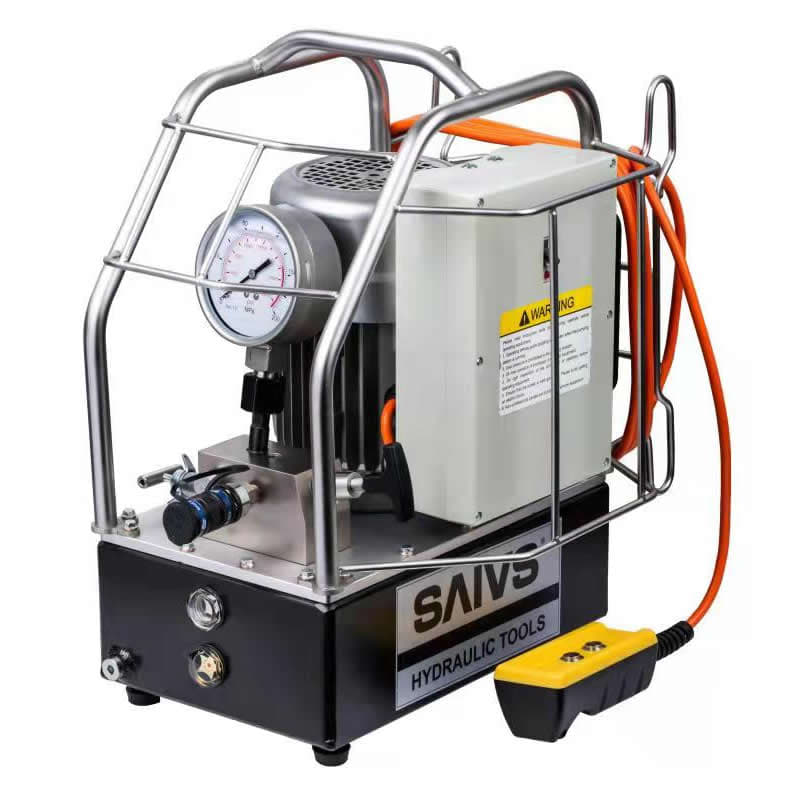

110 / 220 Volt Electric Hydraulic Pump For Small Hydraulic Tools

5out of5 based on6 reviews | Write a review

Reservoir Capacity: 4L
Flow At Rated Pressure: 0.22 L / min
Motor Size: 0.37KW
Input Power:110V-240V 50HZ/60HZ
Max.Operating Pressure: 700 bar
Weight: 17 KG
Minimum Order:1Piece
Manufacturer:SAIVS
Country of Origin:China
Applications: Suitable for nut splitters, flange spreaders,
single and double acting small hydraulic cylinders
and other hydraulic tools.
10000PSI Hydraulic Power Pack 700 bar Hydraulic Pump With Electric Motor 700 bar/10000PSI Electric Hydraulic Pump

PDF DOWNLOAD

Description

Product Line: Industrial Tools

Customizable with special requirement

Two Speed design reduces cycle time for higher productivity and efficiency.

Built-in safety valve to prevent overloading.

Durable aluminum oil tank for excellent heat dissipation, rust-proof, easy handling.

Different flow control valves fit special working requirement.

High Strength molded shroud protects the electrical components-class motor from contamination and damage.

Light weight (17kg only) and portable design provides a high power-to-weight ratio.

Designed support to punching, crimping and cutting.

Ordering Example:

Model: PE4-S110/60-04H43

Represents PE4 series portable Electric Pump, input power with single phase 110V/60HZ, fuel tank capacity 4L, with middle position by pass four way three position valve.

Note: Valve Type for PE4

HM43: 4/3 manual valve, for Double Actingcylinder.

HM32: 3/2 manual valve, for Single Acting cylinder.

HE32: 3/2 electric valve, for single acting cylinder.

HM33: 3/3 manual valve, for single acting cylinder.

Applications: Suitable for nut splitters, flange spreaders, single and double acting small Hydraulic Cylinders and other hydraulic tools.

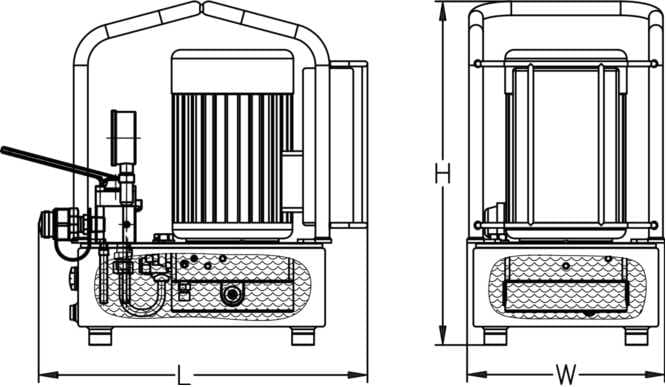

Dimensions

PE4-Series Portable-Electric-Hydraulic-Pump-2.jpg

Model Number	Oil Flow (L/min)		Pressure (bar)		Power	Usable Oil Capacity	Input Power*	Weight	Dimensions
Model Number	High Pressure	Low Pressure	High Pressure	Low Pressure	(KW)	(L)	Input Power*	(kg)	LXWXH(mm)
PE4	0.22	3	700	40	0.37	4	1Ph 110V-240V 50HZ/60HZ	17	342210395

Video

FAQs

Why is my portable electric hydraulic pump not turning on?

This could be due to several reasons including a faulty power cord or switch, low battery, or motor burnout. it's important to first check the power source and cables, and if they are functioning properly, consult with a professional for repairs.

Can i use regular hydraulic oil with my portable electric hydraulic pump?

It's recommended to always use hydraulic oil that is compatible with your specific model of pump. using the wrong type of oil can cause damage to the pump and potentially render it unusable.

How often do i need to change the hydraulic oil in my portable electric hydraulic pump?

The frequency of oil changes will largely depend on how frequently you're using the pump and the overall workload. however, as a general rule of thumb, it's recommended to change the oil every 1,000 hours of use or at least once a year.

Why is my pump making strange noises?

Depending on the sound, this could indicate various issues such as air in the system, loose components, or a malfunctioning motor. it's best to inspect the pump thoroughly and consult with a professional if the issue persists.

How do i troubleshoot leaks in my portable electric hydraulic pump?

When encountering leaks, it's important to first identify where the leak is occurring from. this could be from a damaged hydraulic hose, fittings that aren't tightened enough, or faulty seals. once identified, replace or repair the damaged parts accordingly.
