Optimizing Flange Bolt Tightening with Hydraulic Torque Wrenches

Proper tightening of flange bolts is crucial in ensuring the integrity and leak-free Performance of industrial piping systems.

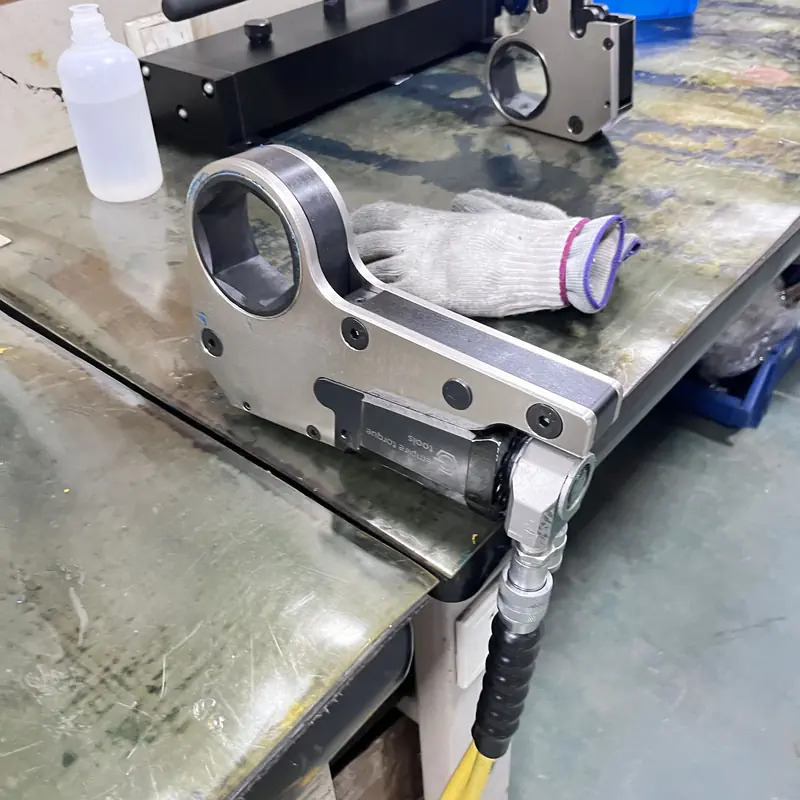

Utilizing hydraulic torque wrenches, especially in synchronized configurations, offers a precise and efficient method for achieving uniform bolt tensioning.

The Importance of Synchronization

Employing two or four Hydraulic Torque Wrenches simultaneously serves to distribute the applied force evenly across the flange.

This approach minimizes the risk of over-compressing the gasket on one side, which can lead to sealing failures and subsequent leaks.

By connecting multiple wrenches to a single hydraulic pump, synchronized operation ensures that all tools deliver the set torque concurrently,

facilitating parallel closure of the flange faces.

This method not only enhances torque accuracy—achieving deviations as low as 3%—but also significantly boosts operational efficiency,

potentially quadrupling the productivity compared to single-wrench systems.

Standardized Bolt Tightening Sequence

Adhering to a systematic bolt tightening sequence is essential to maintain flange integrity and gasket performance. The recommended procedure includes:

1. Multi-Stage Tightening: Bolts should be tightened in multiple stages, following a specific sequence to ensure even load distribution.

2. Numbering Bolts: Assign numbers to the bolts starting from the 12 o'clock position and proceeding clockwise. This numbering aids in maintaining the correct tightening order during the process.

3. Three-Pass Tightening: The tightening process should be executed in three passes, with each pass starting 120° apart from the previous one to promote uniform stress distribution.

4. First Pass: Apply 50% of the target torque using a crisscross pattern. This step ensures the flange faces remain parallel and minimizes distortion that could affect gasket sealing.

5. Second Pass: Increase to 100% of the target torque, employing a circular tightening method. During this phase, monitor the flange gap to confirm uniformity, ensuring consistent bolt loading.

6. Third Pass: Reapply 100% of the target torque following the initial tightening sequence. This final pass compensates for any relaxation or settling that may have occurred, securing the desired bolt tension.

7. Synchronized Tightening: For systems utilizing two or four synchronized hydraulic torque wrenches, implement a diagonal tightening pattern. This approach further ensures even distribution of forces across the flange, enhancing the reliability of the seal.




Advantages of Synchronized Hydraulic Torque Wrench Systems

• Enhanced Accuracy: Synchronized systems deliver precise torque application, reducing the likelihood of under-tightening or over-tightening, which can compromise flange integrity.

• Improved Efficiency: Operating multiple wrenches simultaneously accelerates the tightening process, leading to significant time savings and increased productivity.

• Uniform Load Distribution: Synchronized tightening ensures even force application, minimizing flange distortion and promoting optimal gasket performance.

Conclusion

Implementing synchronized hydraulic torque wrench systems for flange bolt tightening is a best practice that enhances both the efficiency

and reliability of industrial piping installations. By following a structured multi-stage tightening sequence and utilizing synchronized tools,

maintenance professionals can achieve precise and uniform bolt tensioning, thereby ensuring the longevity and leak-free operation of flange connections.
