How Does a Hydraulic Bolt Torquing Machine Ensure Precise and Reliable Fastening?

Introduction

Hydraulic bolt torquing machines are essential tools for achieving precise and controlled Bolt Tightening in industrial applications.

These machines play a critical role in ensuring joint integrity, preventing failures, and maintaining safety across industries such as construction, manufacturing, and energy sectors.

This article provides an in-depth guide to hydraulic bolt torquing machines, covering their working principles, essential components, operational techniques, factors influencing accuracy, and the importance of regular maintenance and calibration.

I. Understanding hydraulic bolt torquing machines

A hydraulic bolt torquing machine is a specialized tool that applies controlled hydraulic pressure to achieve the desired torque in bolts.

Unlike manual torque wrenches, hydraulic torque machines provide a higher degree of accuracy and repeatability, making them suitable for heavy-duty applications where precise clamping force is essential.

These machines are commonly used in industries where large bolts and high torque values are required, such as wind energy, oil and gas, and structural engineering.

II. Key Components and Equipment

To operate effectively, a hydraulic bolt torquing machine consists of several essential components:

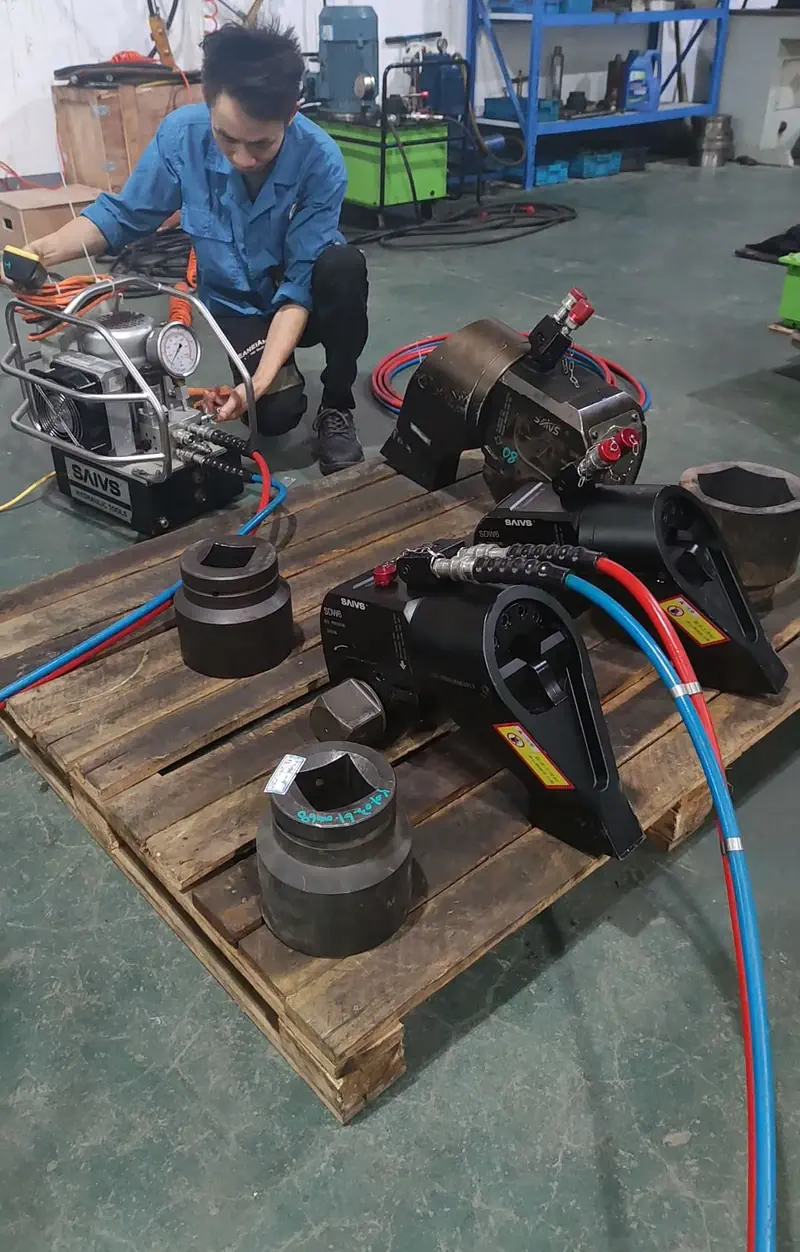

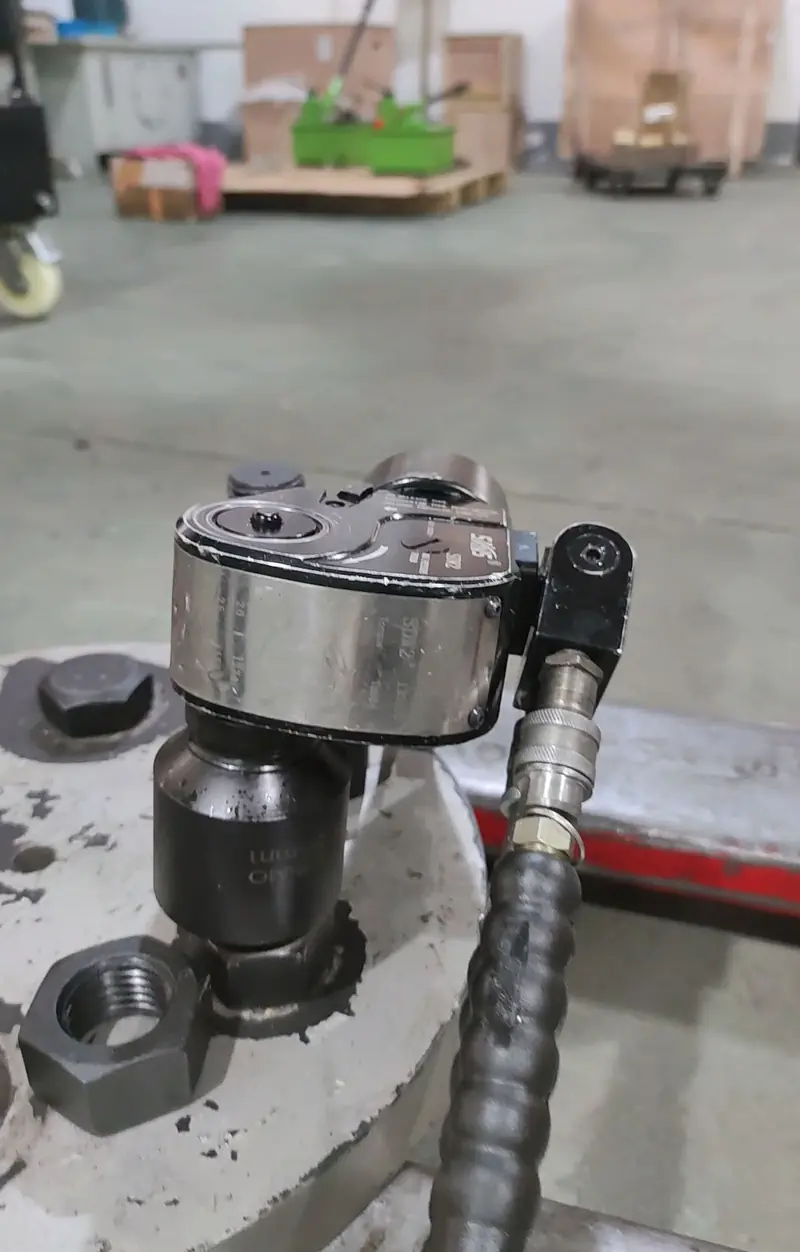

1. Hydraulic Torque Wrench – The core tool responsible for applying controlled torque to the bolt. These wrenches come in different sizes and configurations to accommodate various applications.

2. hydraulic pump – Provides the necessary hydraulic pressure to drive the Torque Wrench. Pumps can be manually operated or powered by electricity or air for higher efficiency.

3. Reaction Arm – Ensures stability during torquing by counteracting the applied force, preventing unnecessary movement of the wrench.

4. Hoses and Connectors – High-pressure hydraulic hoses and fittings transmit hydraulic fluid between the pump and the torque wrench, enabling seamless operation.

III. How to Use a Hydraulic Bolt Torquing Machine

Using a hydraulic bolt torquing machine correctly is crucial to achieving consistent and precise results. Follow these steps for effective bolt tightening:

1. Preparation – Inspect all equipment for proper functionality, ensure bolts and mating surfaces are clean, and verify torque specifications based on engineering requirements.

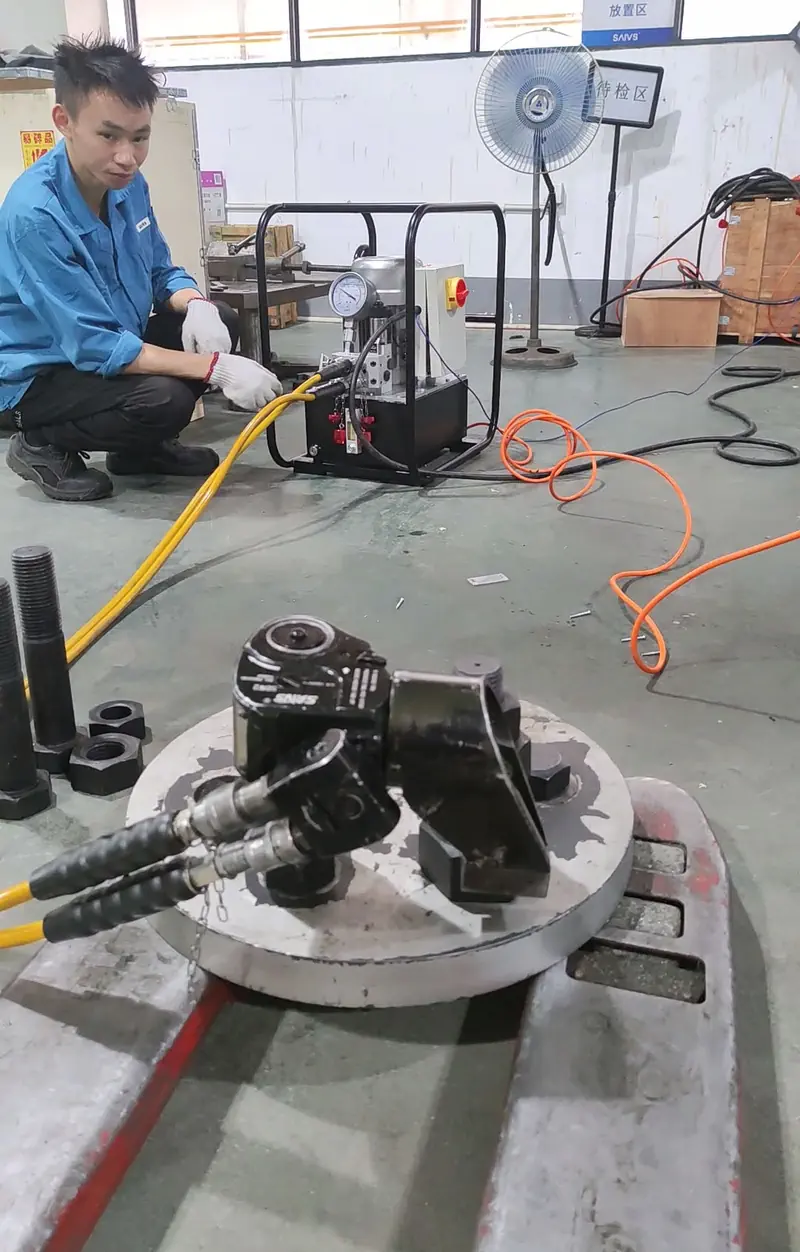

2. Setup – Connect the hydraulic pump to the torque wrench using appropriate hoses and fittings. Ensure that the reaction arm is positioned correctly against a stable surface.

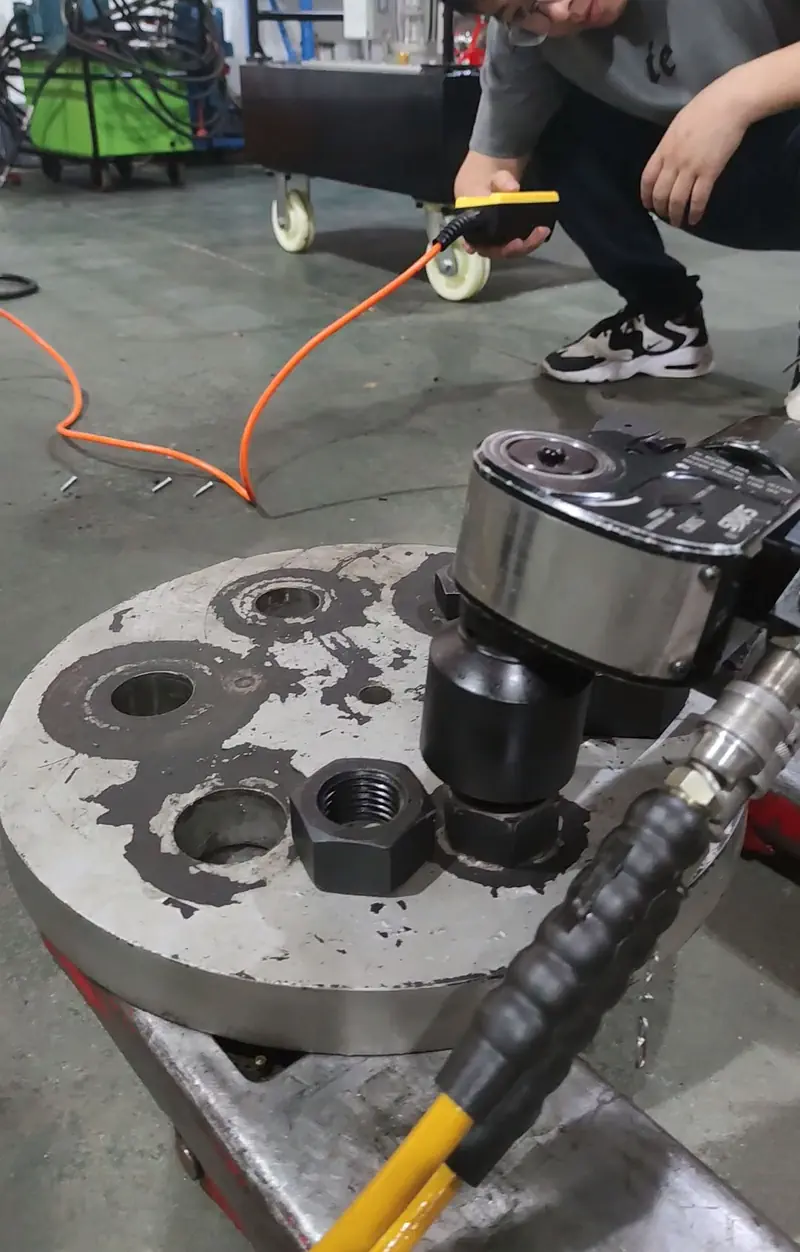

3. Torque Application – Gradually apply hydraulic pressure to the torque wrench, increasing torque in controlled increments to achieve the desired clamping force.

4. Verification – Use torque measurement devices or electronic indicators to confirm the applied torque meets specifications before finalizing the tightening process.

IV. Factors Affecting Torque Accuracy

Several factors can influence the precision of hydraulic bolt torquing:

1. Friction and Lubrication – Proper lubrication reduces friction between bolt threads and mating surfaces, ensuring consistent torque application.

2. Surface Conditions – Clean and smooth surfaces promote better contact and even distribution of clamping forces across the joint.

3. Temperature Variations – Thermal expansion can impact bolt elongation and torque accuracy, requiring adjustments based on operating conditions.

4. Tool Calibration – Regular calibration of hydraulic torque machines ensures that the applied torque remains within specified tolerances.

V. Importance of Calibration and Maintenance

To maintain the efficiency and longevity of hydraulic bolt torquing machines, regular calibration and maintenance are essential:

1. Calibration Procedures – Periodic testing ensures that the torque output remains within acceptable limits, preventing inaccuracies in bolting applications.

2. Routine Maintenance – Inspect hydraulic pumps, hoses, and wrenches for wear and tear, replacing damaged components to avoid performance issues.

3. Proper Storage – Store hydraulic tools in a clean, dry environment to prevent contamination or degradation of critical parts.

Conclusion

Hydraulic bolt torquing machines provide a reliable and efficient solution for achieving precise bolt tightening in industrial applications.

By understanding their components, proper operational techniques, influencing factors, and the importance of maintenance, professionals can ensure safe and secure bolted connections.

Investing in well-calibrated and properly maintained hydraulic torquing equipment enhances productivity, minimizes failures, and ensures compliance with industry standards.
